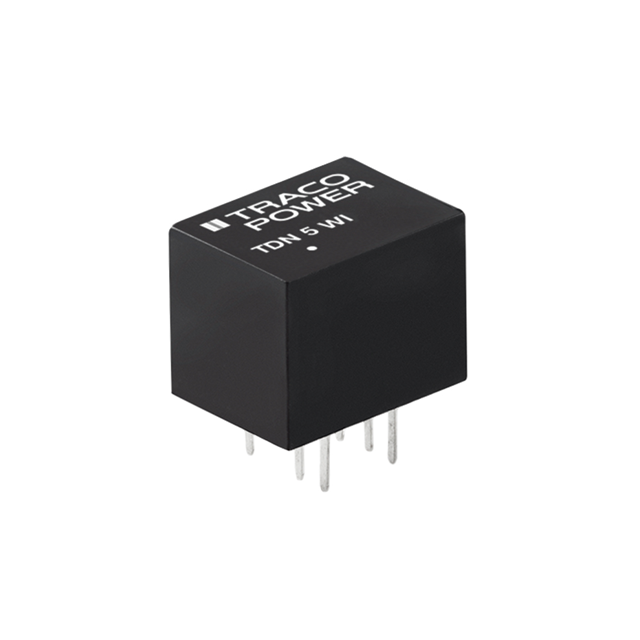

TDN 5-0923WI

TDN 5-0923WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TDN 5-0923WI

• Description：DC DC CONVERTER +/-15V 5W
• Series：TDN 5WI (5W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：168mA, 168mA
• Power (Watts)：5 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 75°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 6 Leads
• Size / Dimension：0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TDN 5-0923WI
