TE0600-02IN

Overview

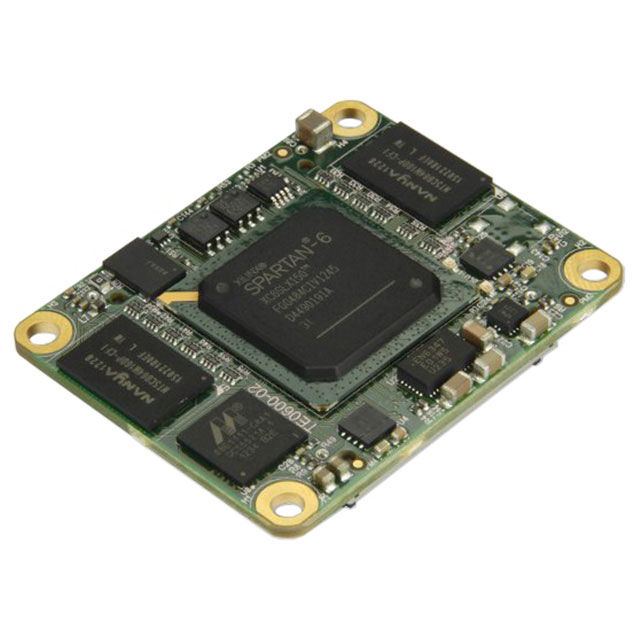

The TE0600-02IN is an embedded module manufactured by Trenz Electronic GmbH, designed for industrial applications. It integrates the Xilinx Spartan-6 LX45 FPGA operating at a maximum frequency of 125MHz. The module provides 256MB of SDRAM and 16MB of Flash memory for data storage and program execution. It utilizes the MicroMod form factor, facilitating compact system integration. The component supports standard communication interfaces including SPI, I2C, UART, and Ethernet, enabling versatile connectivity for sensor networks and control systems.

Feature Summary

• Integrates Xilinx Spartan-6 LX45 FPGA core for programmable logic processing
• Includes 256MB SDRAM and 16MB Flash for robust memory management
• Adopts MicroMod standard interface for modular carrier board compatibility
• Supports multiple serial and parallel communication protocols

Applications

• Industrial automation and control systems
• Embedded sensor data acquisition nodes
• Portable diagnostic equipment
• IoT gateway modules

Procurement Notes

Verify the specific revision level and package type when ordering to ensure compatibility with existing carrier boards. Confirm lead times as production schedules may vary. Request updated datasheets directly from Trenz Electronic or authorized distributors to validate current manufacturing status and pinout definitions before finalizing design implementations.

Selection Notes

Select this module when a cost-effective FPGA solution with moderate logic capacity is required. It is suitable for designs needing reliable serial communication and moderate memory resources within a small footprint. Consider the Spartan-6 architecture lifecycle status and compare against newer Xilinx families if future scalability or advanced features are anticipated for the target application.

Part Context

This part belongs to the TE0600 series of embedded modules from Trenz Electronic. These modules are based on Xilinx Spartan-6 FPGAs and are designed to provide a compact computing platform. The series typically offers various memory configurations and interface options to support diverse embedded development needs across different industrial and commercial sectors.

Replacement Considerations

No direct public substitute part numbers are documented for this specific configuration. Designers should evaluate newer Xilinx Artix or Zynq UltraScale+ modules from Trenz Electronic or other vendors if migration is necessary due to end-of-life constraints.
