TE0600-02IVF

Overview

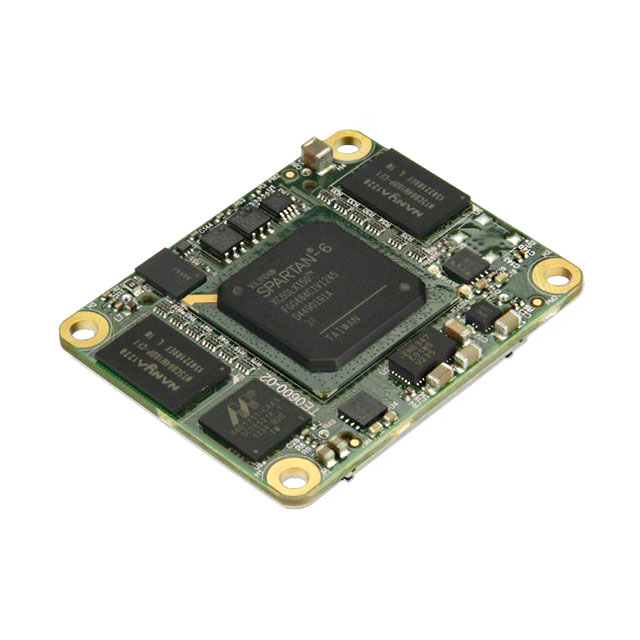

The TE0600-02IVF is a System-on-Module (SOM) manufactured by Trenz Electronic, designed for embedded computing applications. It integrates an AMD Xilinx Spartan-6 LX150 FPGA operating at a maximum frequency of 125 MHz. The module includes 256 MB of RAM and 16 MB of flash memory storage. Physical dimensions are 50 mm x 40 mm. The component supports an extended industrial operating temperature range from -40°C to +85°C.

Feature Summary

• Integrates AMD Xilinx Spartan-6 LX150 FPGA core
• Includes 256 MB RAM and 16 MB flash memory
• Supports extended industrial temperature operation

Applications

• Industrial control systems
• Embedded data acquisition
• Custom logic prototyping

Procurement Notes

Verify the specific manufacturing date code and lot number upon order confirmation to ensure compliance with project timelines. Confirm RoHS3 compliance status directly with the supplier or authorized distributor prior to finalizing procurement agreements. Request updated supply availability information as inventory levels for this specific variant may fluctuate based on global component allocation policies.

Selection Notes

Select this module when a Spartan-6 LX150 architecture is required within a compact 50x40 mm form factor. Ensure the application environment remains within the specified -40°C to +85°C operational limits. Verify that the 256 MB RAM and 16 MB flash capacities meet the system's memory requirements before proceeding with integration into the carrier board design.

Part Context

This part belongs to the TE0600 series of System-on-Modules from Trenz Electronic. These modules are engineered to simplify the integration of Xilinx FPGAs into custom hardware designs. The series provides a standardized interface and mechanical footprint, facilitating rapid development and deployment in various embedded computing scenarios requiring reliable FPGA performance.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult official Trenz Electronic resources for potential obsolescence management or alternative module recommendations if this specific SKU becomes unavailable.
