Product Detailed Parameters
- Description：IC MOD LX150 125MHZ 256MB
- Series：TE0600
- Mfr：Trenz Electronic GmbH
- Package：Bulk
- Module/Board Type：FPGA Core
- Core Processor：Spartan-6 LX-150
- Co-Processor：-
- Speed：125MHz
- Flash Size：16MB
- RAM Size：256MB
- Connector Type：Samtec LSHM
- Size / Dimension：1.970" L x 1.570" W (50.00mm x 40.00mm)
- Operating Temperature：-40°C ~ 85°C
Download product information
Overview

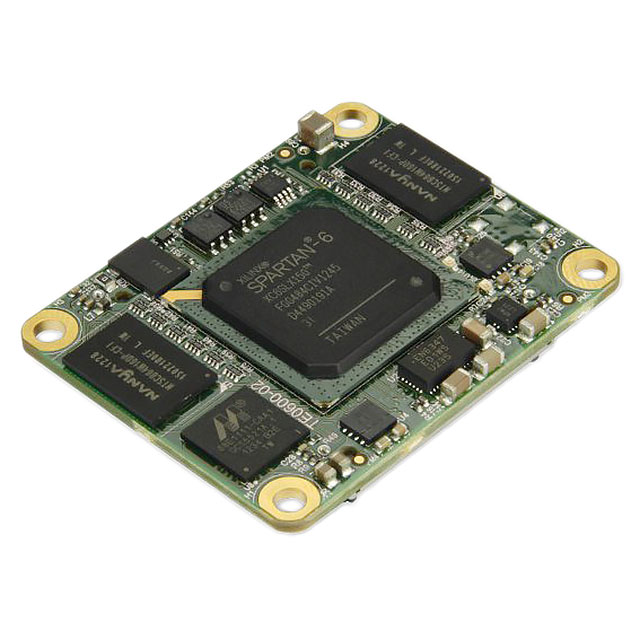

The TE0600-02IVFN is an embedded FPGA module from Trenz Electronic GmbH, part of the TE0600 series. It integrates a Xilinx Spartan-6 LX150 FPGA operating at a 125MHz clock speed. The module includes 256MB of RAM and 16MB of flash memory. Designed for industrial applications, it offers a compact form factor suitable for space-constrained embedded systems requiring reliable field-programmable gate array capabilities.
Feature Summary
- Integrates Xilinx Spartan-6 LX150 FPGA core
- Includes integrated 256MB RAM and 16MB flash storage
- Optimized for industrial-grade embedded environments
Applications
- Industrial automation control systems
- Embedded data acquisition modules
- Compact IoT gateway hardware
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS3 compliance status prior to integration. Check current supply chain availability as the product may be discontinued at certain retail levels. Ensure compatibility with carrier boards designed for the TE0600 micro-module form factor.
Selection Notes
Select this module when a Spartan-6 LX150 FPGA is required in a pre-integrated, space-efficient package. Consider the fixed 256MB RAM and 16MB flash configuration against project memory needs. Evaluate thermal management requirements for the specific industrial operating range. Compare against newer FPGA families if future scalability is a priority.
Part Context
This component belongs to the TE0600 family of micro-modules by Trenz Electronic. These modules are designed to simplify FPGA integration into custom PCBs via standardized interfaces. The TE0600 series provides a modular approach to embedded computing, allowing designers to focus on application logic while leveraging proven hardware foundations.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Trenz Electronic directly for end-of-life notifications or recommended next-generation alternatives within the same form factor.
