TE0600-03B

Overview

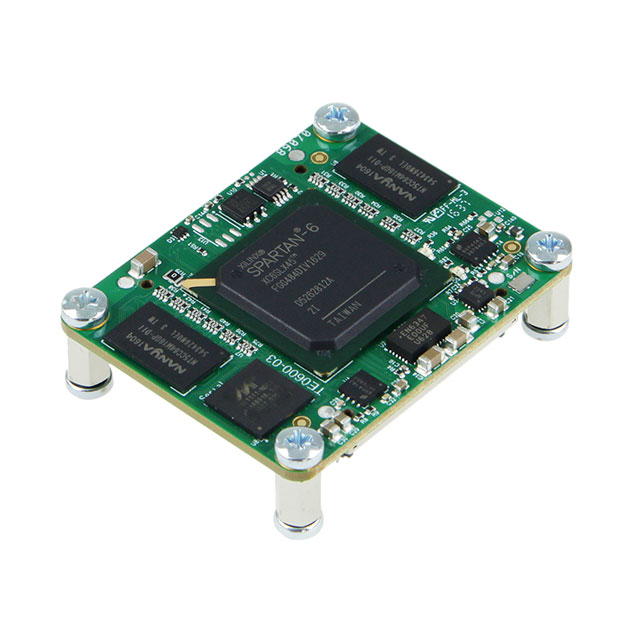

The TE0600-03B is a System-on-Module manufactured by Trenz Electronic GmbH, designed for embedded logic applications. It integrates an AMD (formerly Xilinx) Spartan-6 LX processor as its core programmable logic component. The module provides 128 MByte of SDRAM for system memory and includes 16 MB of flash storage. It operates within a commercial temperature range of 0°C to +70°C and requires a 3.3 V power supply. The physical dimensions are 50 mm x 40 mm.

Feature Summary

• Integrates a Spartan-6 LX FPGA for programmable logic processing
• Includes onboard 128 MByte SDRAM and 16 MB flash memory
• Supports Ethernet, JTAG, SPI, and 1-Wire interfaces

Applications

• Prototyping for embedded systems
• Industrial control applications
• Research and development hardware platforms

Procurement Notes

Verify current availability status as the product is listed as End-of-Life (EOL). Confirm final unit specifications against official datasheets before integration into production designs. Check for valid replacement modules from the manufacturer's portfolio to ensure long-term supply chain stability.

Selection Notes

Select this module when a compact SOM solution based on the Spartan-6 architecture is required. Ensure the design accommodates the commercial temperature range limits. Verify that the integrated memory capacities meet the specific application requirements without needing external expansion.

Part Context

This module belongs to the TE0600 series of System-on-Modules produced by Trenz Electronic GmbH. The company specializes in FPGA-based embedded solutions and modular hardware stacks. This specific part represents a standardized implementation of the Spartan-6 platform for general-purpose computing tasks.

Replacement Considerations

• TE0600-03A
• TE0600-03C
