TE0600-03BM

Overview

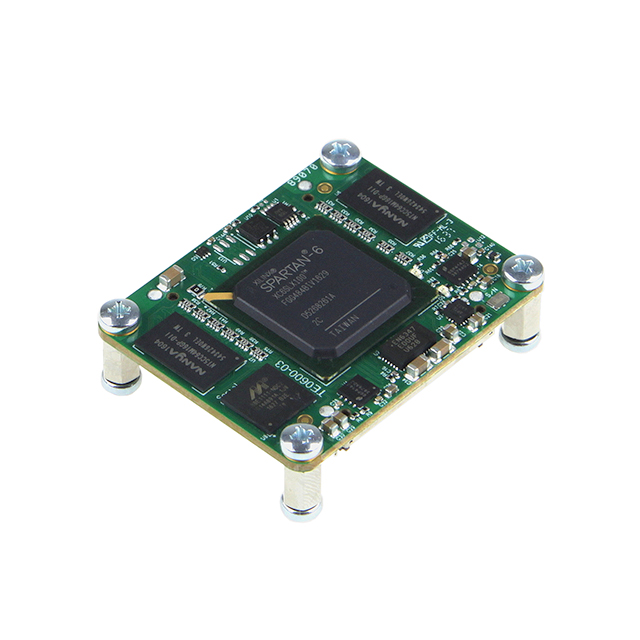

The TE0600-03BM is a System-on-Module (SOM) manufactured by Trenz Electronic GmbH, designed for programmable logic applications. It integrates the Xilinx Spartan-6 LX FPGA as its core processing element. The module includes 128 MB of SDRAM and 16 MB of flash memory to support system operations. It operates within a commercial temperature range of 0°C to +70°C and requires a 3.3 V supply voltage. The physical dimensions are 50 mm x 40 mm. Key interfaces include Ethernet, JTAG, SPI, and 1-Wire connectivity.

Feature Summary

• Integrates Xilinx Spartan-6 LX FPGA for programmable logic
• Includes 128 MB SDRAM and 16 MB flash storage
• Supports Ethernet, JTAG, SPI, and 1-Wire interfaces
• Commercial temperature range: 0°C to +70°C

Applications

• Programmable logic development
• Embedded computing systems
• Industrial control modules

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the specific suffix 'M' aligns with required environmental or packaging specifications. Check for Product Change Notifications (PCN) regarding manufacturing updates. Ensure compatibility with carrier boards supporting the 50 mm x 40 mm footprint and 3.3 V power requirements.

Selection Notes

Select this module when a Spartan-6 LX FPGA is required with integrated memory in a compact form factor. Verify that the commercial temperature range (0°C to +70°C) meets operational needs. Ensure the carrier design supports the specified interfaces including Ethernet and JTAG. Compare against newer families if higher performance or extended temperature ranges are necessary.

Part Context

This module belongs to the TE0600 series from Trenz Electronic, which focuses on Xilinx-based System-on-Modules. The Spartan-6 architecture provides a balance of logic resources and cost-effectiveness for embedded applications. The 50 mm x 40 mm standard footprint facilitates integration into various carrier designs.

Replacement Considerations

The TE0600-03B is listed as discontinued. No direct public substitute part numbers are confirmed in the provided data. Evaluate next-generation Xilinx Artix or Kintex SOMs from Trenz Electronic for functional equivalence.
