TE0710-02-100-2CF

Microcontrollers, Microprocessor, FPGA Modules Overview

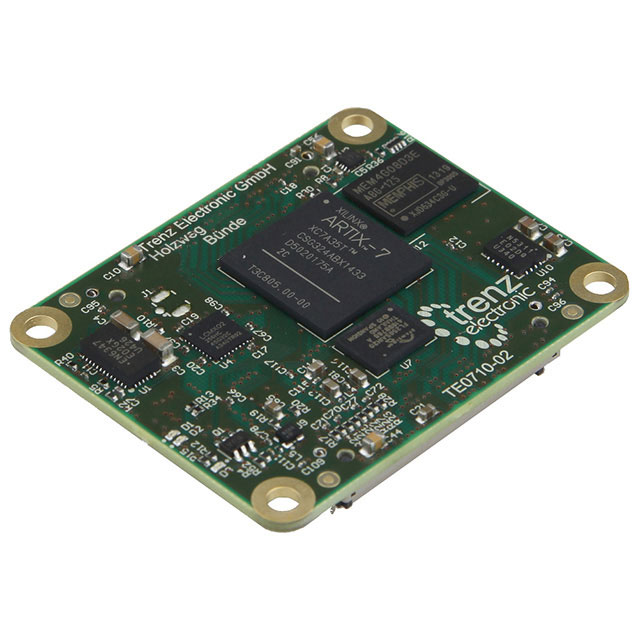

The TE0710-02-100-2CF is a System-on-Module (SOM) manufactured by Trenz Electronic GmbH, designed for embedded FPGA applications. It integrates an AMD/Xilinx Artix-7 XC7A100T processor with a maximum operating speed of 100MHz. The module includes 512MB of DDR3 RAM and 32MB of Flash memory. Its physical dimensions are 50.00mm x 40.00mm (1.970" L x 1.570" W), utilizing Samtec LSHM connectors for interface connectivity.

Microcontrollers, Microprocessor, FPGA Modules Feature Summary

• Integrates AMD/Xilinx Artix-7 XC7A100T FPGA fabric for programmable logic processing
• Includes dedicated 512MB DDR3 memory subsystem for data storage and processing
• Features compact form factor suitable for space-constrained embedded designs
• Utilizes Samtec LSHM connectors for reliable high-density interconnectivity

Microcontrollers, Microprocessor, FPGA Modules Applications

• Embedded industrial control systems requiring FPGA flexibility
• Custom hardware acceleration solutions
• Prototyping and development platforms for Xilinx Artix-7 devices
• Compact embedded computing modules

Microcontrollers, Microprocessor, FPGA Modules Procurement Notes

Verify component authenticity through authorized Trenz Electronic distributors or official channels. Confirm the specific suffix '2CF' matches project requirements, as ordering suffixes may indicate variations in connector type or revision level. Check current availability status, as this model may have limited stock or end-of-life implications. Ensure compatibility with baseboards supporting the specified Samtec LSHM interface and power requirements before procurement.

Microcontrollers, Microprocessor, FPGA Modules Selection Notes

Select this module when a compact SOM solution with the Artix-7 A100T is required. It provides integrated DDR3 and Flash, reducing external component count. Consider the 50mm x 40mm footprint for mechanical integration. Verify that the 100MHz speed grade meets timing constraints. Compare against other TE0710 variants if different memory sizes or processor speeds are needed. Ensure the baseboard design supports the specific connector type and voltage levels defined in the datasheet.

Microcontrollers, Microprocessor, FPGA Modules Part Context

This part belongs to the Trenz Electronic TE0710 series of System-on-Modules based on Xilinx Artix-7 FPGAs. These modules are designed to simplify the integration of complex FPGA functionality into custom carrier boards. The series typically offers various configurations of memory and interfaces, allowing designers to select the optimal balance of performance, size, and cost for their specific embedded application needs.

Microcontrollers, Microprocessor, FPGA Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. For equivalent functionality, consider other Trenz Electronic SOMs featuring the Artix-7 A100T, such as the TE0710-02-72I21-A, though pinout and memory configurations may differ. Always verify electrical and mechanical compatibility before substitution.
