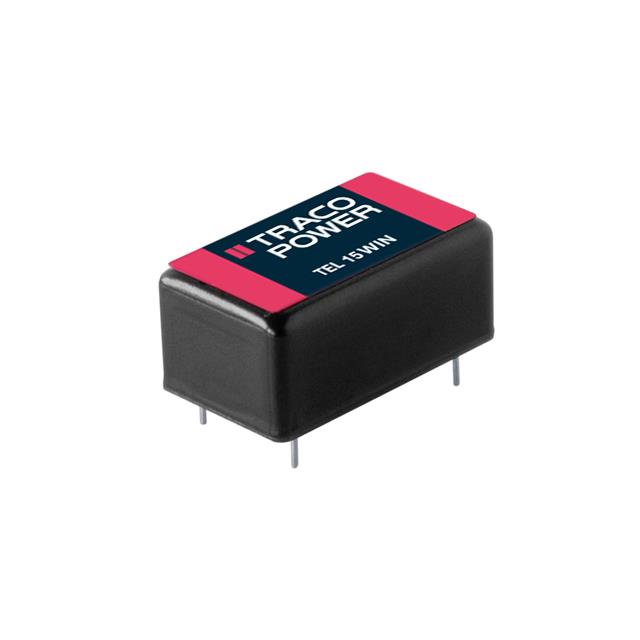

TEL 15-4823WIN

TEL 15-4823WIN is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is ULTRA COMPACT 15 WATT CONVERTER. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TEL 15-4823WIN

• Description：ULTRA COMPACT 15 WATT CONVERTER
• Series：TEL 15WIN (15W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA, 500mA
• Power (Watts)：15 W
• Voltage - Isolation：1.8 kV
• Applications：ITE (Commercial)
• Features：Baseplate
• Operating Temperature：-40°C ~ 80°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module, 5 Leads
• Size / Dimension：0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TEL 15-4823WIN
