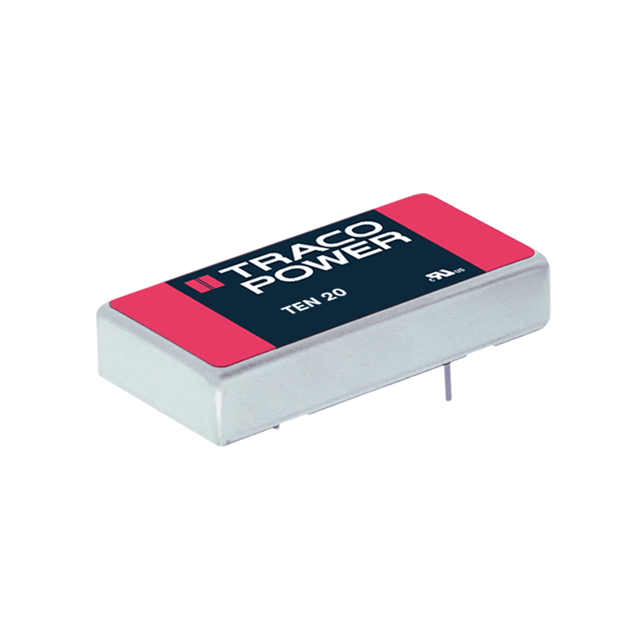

TEN 20-1211 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 5V 20W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for TEN 20-1211
- Description：DC DC CONVERTER 5V 20W
- Series：TEN 20 (20W)
- Mfr：Traco Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：9V
- Voltage - Input (Max)：18V
- Voltage - Output 1：5V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：4A
- Power (Watts)：20 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：SCP
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：84%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for TEN 20-1211
