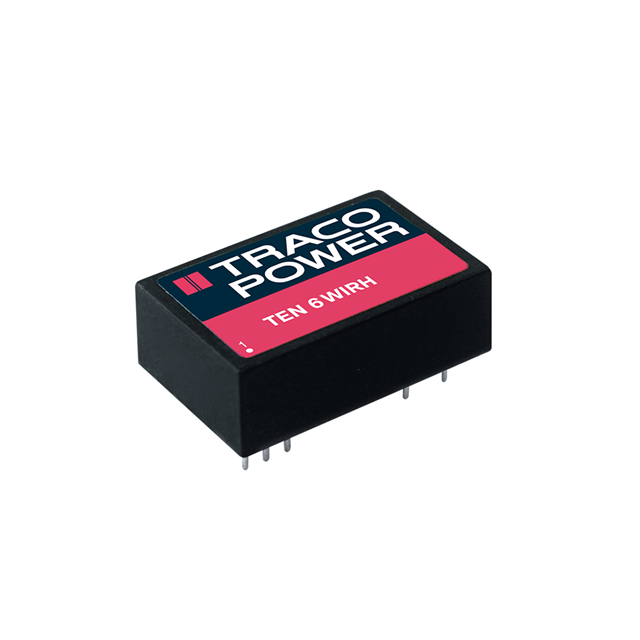

TEN 6-11015WIRH

TEN 6-11015WIRH is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is 6 WATT DC/DC, 4000 VAC ISOLATION. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TEN 6-11015WIRH

• Description：6 WATT DC/DC, 4000 VAC ISOLATION
• Series：TEN (6W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：5.94 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 90°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 9 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TEN 6-11015WIRH
