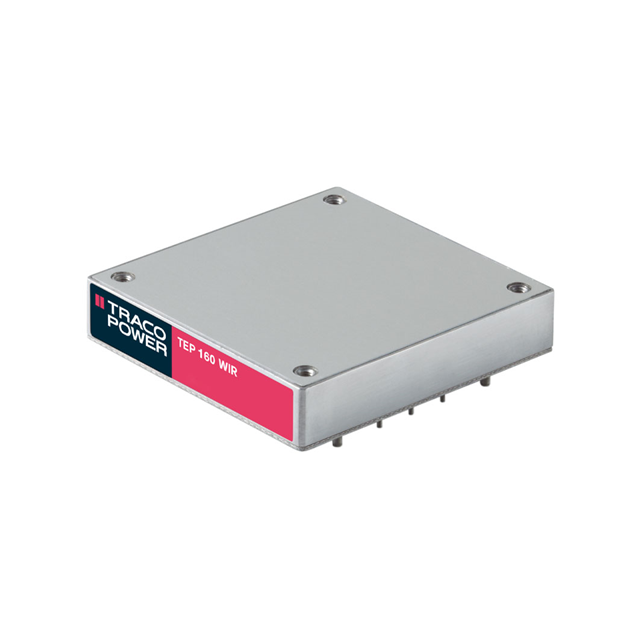

TEP 160-2416WIR

TEP 160-2416WIR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 28V 140W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TEP 160-2416WIR

• Description：DC DC CONVERTER 28V 140W
• Series：TEP 160WIR (196W)
• Mfr：Traco Power
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：140 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 75°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：9-DIP Module
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TEP 160-2416WIR
