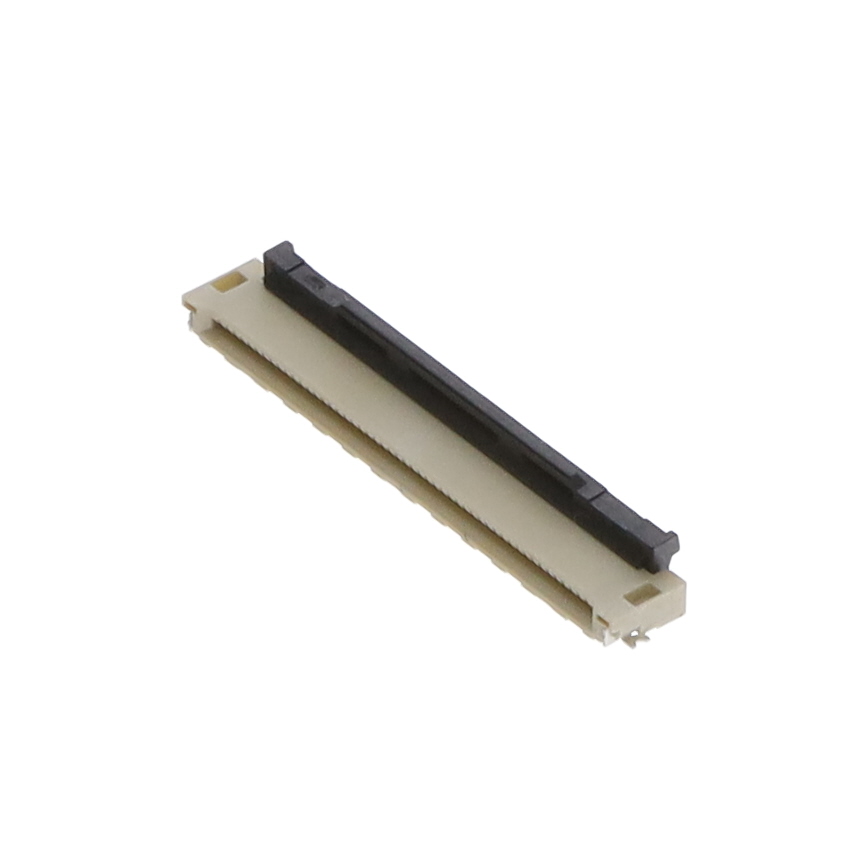

FFC, FPC (Flat Flexible) Connector Assemblies TF07V-50S-0.5SH(800) product image

TF07V-50S-0.5SH(800)

$1.31

Description：RECEPTACLE, 0.5MM PITCH, 50POS.,
Series：TF07V
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3b039b181076 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Hirose Electric Co Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TF07V-50S-0.5SH(800) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is RECEPTACLE, 0.5MM PITCH, 50POS.,. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for TF07V-50S-0.5SH(800)

Description：RECEPTACLE, 0.5MM PITCH, 50POS.,
Series：TF07V
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Through Hole, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：50
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.075" (1.90mm)
Locking Feature：Flip Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Liquid Crystal Polymer (LCP)
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for TF07V-50S-0.5SH(800)

TF07V-50S-0.5SH(800)
