Product Detailed Parameters
- Description：CMC 3A 2LN TH
- Series：TF
- Mfr：TDK Corporation
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-20°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.650" Dia x 0.492" W (16.50mm x 12.50mm)
- Height (Max)：-
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

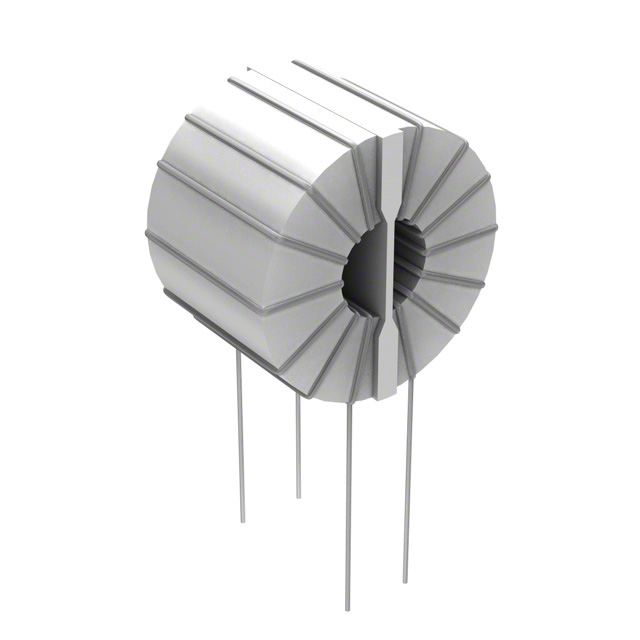

The TF1713VU-102Y3R0-01 is a through-hole common mode choke coil manufactured by TDK Corporation, designed for AC power supply line filtering applications. It features a toroidal core construction with four PC pins in a vertical orientation without a base. The component measures 16.50mm x 12.50mm with a diameter of 0.650 inches. It supports a current rating of 3A and is configured as a two-line filter.
Feature Summary
- Toroidal core construction for efficient magnetic flux containment
- Through-hole mounting configuration with four PC pins
- Designed specifically for AC power supply line filtering
Applications
- AC power supply input filtering
- Common mode noise suppression in power lines
- Electromagnetic interference reduction in electronic equipment
Procurement Notes
Verify the specific datasheet version to confirm mechanical dimensions and electrical characteristics match design requirements. Ensure the through-hole footprint aligns with PCB layout specifications. Confirm that the 3A current rating meets the application's operational needs. Check for any specific handling or soldering guidelines provided by TDK for this component type.
Selection Notes
Select this component when a through-hole common mode choke is required for AC power lines. The 3A rating suits moderate power applications. The toroidal design offers compact size relative to performance. Verify compatibility with existing PCB assembly processes for through-hole components. Consider the physical dimensions for enclosure space constraints.
Part Context
This component belongs to TDK's line of common mode choke coils, which are essential for electromagnetic compatibility in power electronics. TDK manufactures these filters using ferrite materials to attenuate high-frequency noise. The product line includes various configurations for different current ratings and mounting styles, serving diverse industrial and consumer applications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult TDK technical support or authorized distributors for equivalent components with matching electrical and mechanical specifications.
