Product Detailed Parameters
- Description：CMC 6A 2LN TH
- Series：TF
- Mfr：TDK Corporation
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：30mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-20°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.906" L x 0.787" W (23.00mm x 20.00mm)
- Height (Max)：1.024" (26.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

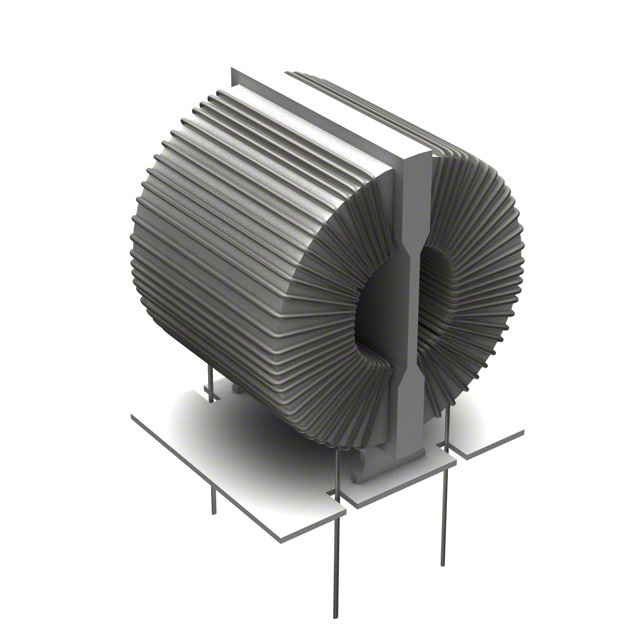

The TF2326VU-102Y6R0-01 is a two-line common mode choke manufactured by TDK Corporation, designed for power line filtering applications. It features a vertical through-hole mounting configuration with four pins and measures 23.00mm in length, 20.00mm in width, and up to 26.00mm in height. The component supports a maximum rated current of 6A and maintains a maximum DC resistance of 30 milliohms. It operates within a temperature range of -20°C to 120°C and belongs to the TF series.
Feature Summary
- Provides common mode noise suppression for two-line power circuits
- Designed for vertical through-hole installation on printed circuit boards
- Constructed for high current handling capabilities in power line applications
Applications
- Power supply input filtering
- Electromagnetic interference suppression in electronic equipment
- Signal integrity protection in power lines
Procurement Notes
Verify component authenticity and datasheet alignment before procurement. Confirm that the specific suffix matches required electrical tolerances. Check for obsolescence status as this part may be discontinued. Ensure replacement components meet identical mechanical and electrical specifications for direct integration into existing designs without modification.
Selection Notes
Select this component when designing systems requiring robust common mode noise attenuation for dual-line power inputs. Consider the 6A current rating and low DC resistance for efficiency. Evaluate the through-hole package constraints against available board space. Verify thermal performance requirements against the specified operating temperature range to ensure reliability under load conditions.
Part Context
This component belongs to TDK's TF series of passive filters, specifically engineered for electromagnetic compatibility in power electronics. Common mode chokes in this category are essential for reducing conducted emissions. The TF series emphasizes reliability and standardized dimensions for industrial and commercial power applications.
Replacement Considerations
The Würth Elektronik part number 744823601 is listed as a similar alternative. Verify pinout compatibility and electrical parameters before substitution.
