Product Detailed Parameters
- Description：CMC 3A 2LN TH
- Series：TF
- Mfr：TDK Corporation
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-20°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.984" Dia (25.00mm)
- Height (Max)：0.748" (19.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

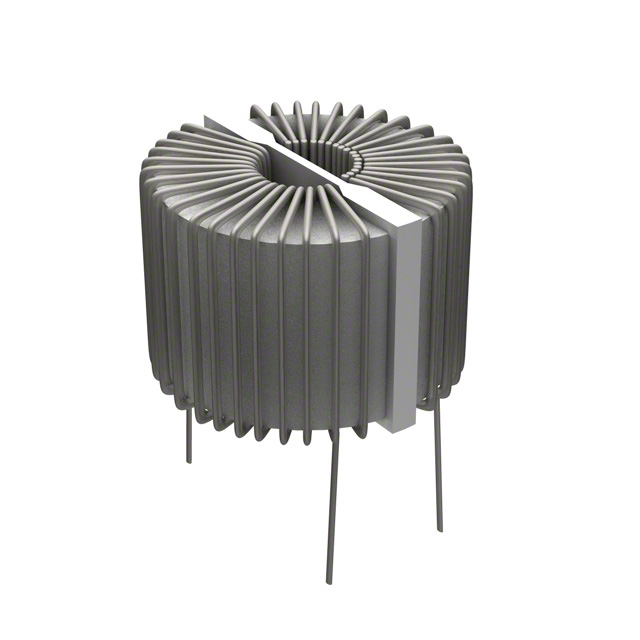

The TF2519HU-102Y3R0-01 is a two-line common mode choke manufactured by TDK Corporation, belonging to the TF series. Designed for power line filtering and noise suppression, this component utilizes a horizontal package with four pins. It supports a maximum rated current of 3A and features a typical DC resistance (DCR) of 3 milliohms. The device operates within a temperature range of -40°C to +125°C.
Feature Summary
- Provides effective common-mode interference reduction for power lines
- Supports high current handling capability up to 3A
- Features low DC resistance for minimal signal loss
Applications
- Power supply input filtering
- Noise suppression in industrial equipment
- Consumer electronics power circuits
Procurement Notes
Verify the specific datasheet version and packaging details before procurement. Confirm that the horizontal pin configuration matches your PCB layout requirements. Ensure the operating temperature range aligns with your system's thermal environment. Cross-reference the manufacturer part number to avoid confusion with similar series components.
