Product Detailed Parameters
- Description：CMC 2A 2LN TH
- Series：TF
- Mfr：TDK Corporation
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-20°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.984" L x 0.787" W (25.00mm x 20.00mm)
- Height (Max)：1.063" (27.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

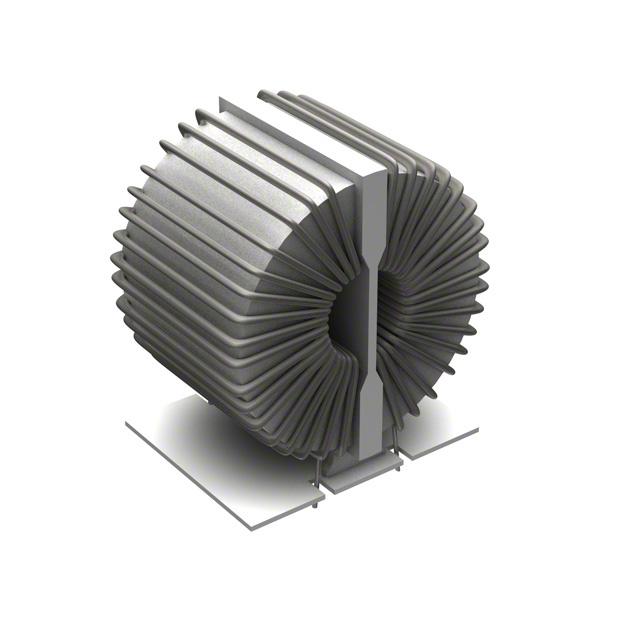

The TF2527VU-302Y2R0-01 is a common mode choke manufactured by TDK Corporation, designed for through-hole mounting. It features a two-line configuration with a rated current of 2A. The component measures 25.00mm in length, 20.00mm in width, and has a maximum height of 27.00mm. It utilizes four PC pins for vertical installation. This device is RoHS compliant and lead-free, suitable for applications requiring electromagnetic interference suppression in power circuits.
Feature Summary
- Provides common mode noise suppression for two-line circuits
- Supports through-hole vertical mounting via four PC pins
- Constructed with lead-free materials ensuring RoHS compliance
Applications
- Power supply units
- Battery chargers
- Portable electronic devices
- Energy-efficient systems
Procurement Notes
Verify the specific datasheet version to confirm detailed electrical parameters such as DC resistance and impedance values, which are not fully listed in the summary data. Ensure the through-hole footprint dimensions match the PCB layout requirements. Confirm that the 2A rating aligns with the operational current needs of the target circuit design before finalizing procurement.
Selection Notes
Select this component when a two-line common mode choke is required for through-hole assembly. The 2A current rating defines its capacity for noise suppression in low-to-medium power applications. Consider the physical dimensions of 25x20mm and the 27mm height to ensure adequate clearance on the printed circuit board during the design phase.
Part Context
This part belongs to the TF Series of common mode chokes from TDK Corporation. These components are engineered to attenuate high-frequency noise in differential lines. The series supports various current ratings and package types, with this specific model focusing on a 2A through-hole solution for robust mechanical integration in consumer and industrial electronics.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs by matching pin configurations, current ratings, and physical dimensions if sourcing alternatives.
