TF325J32K7680R

Crystals Overview

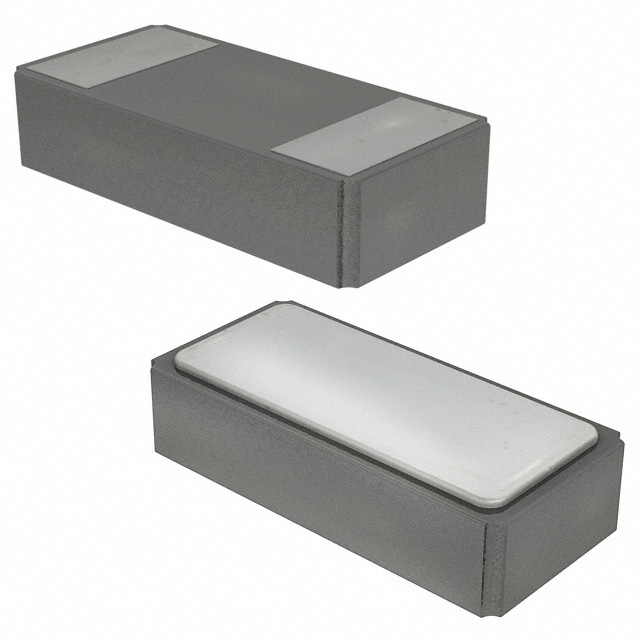

The TF325J32K7680R is a kHz crystal manufactured by CTS-Frequency Controls, belonging to the TF32 series. It operates at a nominal frequency of 32.768 kHz and is designed as a tuning fork type resonator. The component utilizes a surface-mount package configuration with two solder pads (SMD). This specific part number is currently classified as obsolete by the manufacturer, indicating it is no longer in active production.

Crystals Feature Summary

• Tuning fork crystal architecture optimized for low-frequency timing applications
• Surface-mount design facilitating automated assembly processes
• Standard 32.768 kHz output frequency for real-time clock synchronization

Crystals Applications

• Real-time clock circuits in consumer electronics
• Timekeeping modules in portable devices
• Low-power embedded system timing references

Crystals Procurement Notes

Verify availability through authorized distributors or secondary market suppliers, as this component is officially marked as obsolete. Confirm that substitute parts meet all electrical and mechanical specifications required for the original design. Ensure compatibility with existing PCB footprints and soldering profiles when transitioning to alternative components from the same manufacturer family.

Crystals Selection Notes

Select replacement crystals from the TF32 series or compatible tuning fork oscillators that match the 32.768 kHz frequency requirement. Evaluate load capacitance and equivalent series resistance parameters to ensure circuit stability. Consider package dimensions and lead-free compliance if environmental regulations apply to the final product assembly process.

Crystals Part Context

This component belongs to the TF32 series of tuning fork crystals produced by CTS-Frequency Controls. These devices are engineered for precision timekeeping applications requiring stable low-frequency oscillation. The series typically offers various package options and frequency tolerances suitable for battery-powered and space-constrained electronic designs.

Crystals Replacement Considerations

TF322J32K7680R is a confirmed direct substitute within the same manufacturer lineup.
