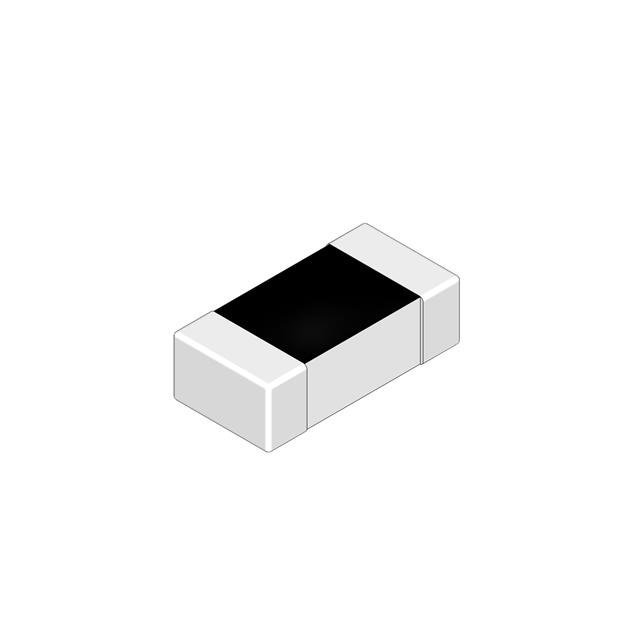

TFE10402V06B0DG

TFE10402V06B0DG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 6VWM 20VC 0402. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for TFE10402V06B0DG

• Description：TVS DIODE 6VWM 20VC 0402
• Series：TFE10402DG
• Mfr：INPAQ Technology Co., Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：6V (Max)
• Voltage - Breakdown (Min)：-
• Voltage - Clamping (Max) @ Ipp：20V (Typ)
• Current - Peak Pulse (10/1000µs)：-
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：HDMI, USB
• Capacitance @ Frequency：0.05pF @ 1MHz
• Operating Temperature：-40°C ~ 85°C (TA)
• Mounting Type：Surface Mount
• Package / Case：0402 (1005 Metric)
• Supplier Device Package：402
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for TFE10402V06B0DG
