TFM-106-01-S-D-A

Headers, Male Pins Overview

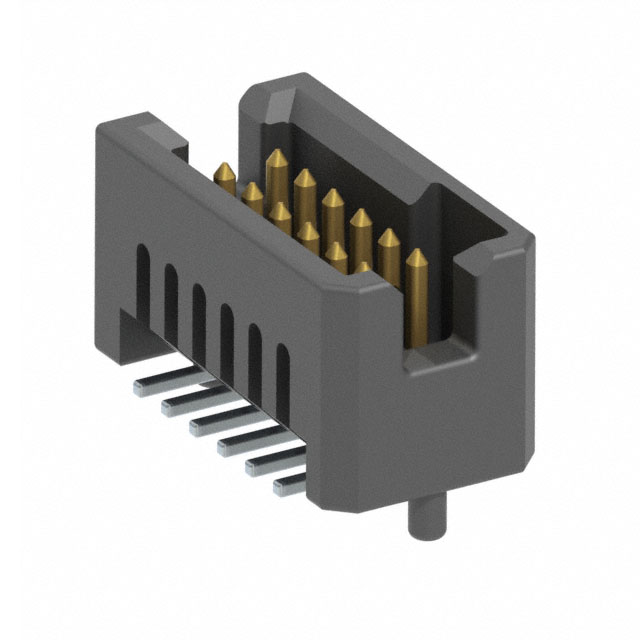

Samtec TFM-106-01-S-D-A is a 12-position, double-row board-to-board header from the Tiger Eye TFM series. It features a 0.050 inch (1.27 mm) pitch and utilizes through-hole mounting with right-angle termination. The connector employs a push-pull locking mechanism for secure mating. Contacts are constructed from phosphor bronze with gold plating on the mated interface and tin plating on the tail. The housing is made of black liquid crystal polymer (LCP), rated UL94 V-0, supporting operation between -55°C and +125°C.

Headers, Male Pins Feature Summary

• Push-pull locking system ensures secure mechanical retention during vibration.
• Four-wall shrouded design provides precise alignment and pin protection.
• Dual-wipe contact technology maintains reliable signal integrity over time.
• Right-angle through-hole termination facilitates compact board stacking.

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Industrial control systems requiring robust connections
• Automotive electronics modules
• Telecommunications infrastructure equipment

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'A' in the part number corresponds to the intended packaging or tape-and-reel configuration as defined by Samtec documentation. Confirm that the right-angle through-hole footprint matches the target PCB layout. Ensure compatibility with the mating socket series within the Tiger Eye ecosystem before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a rigid, high-reliability connection is required for vertical space-constrained applications. The right-angle orientation optimizes board depth compared to standard headers. Verify that the operating environment remains within the specified temperature range and that the current rating per contact meets the circuit requirements without derating issues.

Headers, Male Pins Part Context

The TFM series represents Samtec's ruggedized interconnect solution designed for severe environments. This specific model belongs to the 1.27mm pitch family, offering higher density than traditional 2.54mm connectors while maintaining superior mechanical strength and electrical performance compared to standard commercial-grade headers.

Headers, Male Pins Replacement Considerations

TFM-106-01-S-D-RA

Headers, Male Pins FAQ

What is the function of the 'A' suffix in the part number?

The 'A' suffix typically indicates a specific packaging option, such as tape and reel, suitable for automated pick-and-place assembly processes.

Does this connector support blind mating?

No, the four-wall shroud design requires visual alignment for proper insertion of the pins into the corresponding socket receptacles.
