TFM-106-02-L-D

Headers, Male Pins Overview

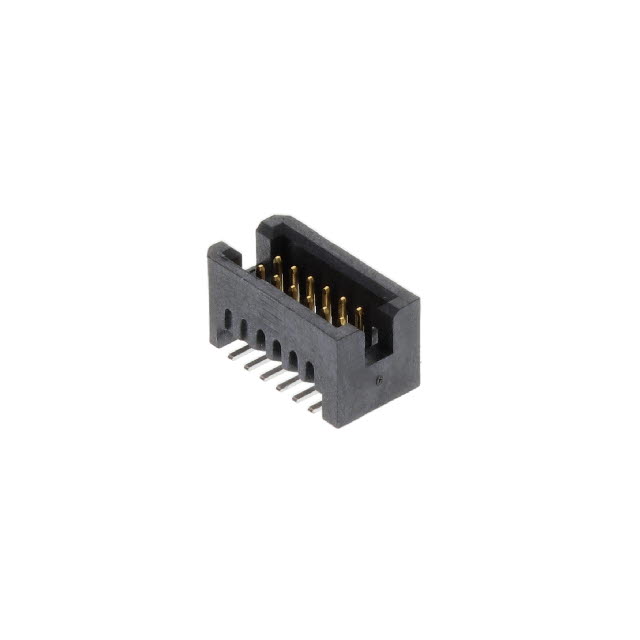

Samtec TFM-106-02-L-D is a surface-mount header in the Tiger Eye TFM series. It features a 1.27mm pitch with 12 positions arranged in two rows. The connector utilizes square phosphor bronze contacts with gold plating for mating surfaces and tin plating for tails. Rated at 3.7A per contact and 250VAC, it operates between -55°C and 125°C. The housing is black liquid crystal polymer (LCP) with UL94 V-0 flammability rating. It includes a four-wall shroud and push-pull locking mechanism.

Headers, Male Pins Feature Summary

• Tiger Eye TFM high-reliability terminal strip system
• Push-pull locking mechanism for secure connection
• Four-wall shrouded design for alignment
• Pick-and-place compatible surface mount termination

Headers, Male Pins Applications

• Board-to-board interconnects
• Cable-to-board connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix of the part number when ordering. The base model TFM-106-02-L-D lacks packaging or tape-and-reel indicators present in variants like TFM-106-02-L-D-K-TR. Confirm whether tube or reel packaging is required for your production line to ensure compatibility with assembly equipment.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust mechanical retention via push-pull latches. Ensure PCB footprint matches the 1.27mm grid. Verify that mating connectors are compatible with the square pin format and shrouded design. Check current requirements against the 3.7A rating per contact.

Headers, Male Pins Part Context

The TFM-106-02-L-D belongs to Samtec's Tiger Eye TFM family, designed for high-reliability applications. It complements other TFM headers and MMS sockets within the broader Tiger Eye ecosystem, offering standardized dimensions and performance characteristics for consistent system integration.

Headers, Male Pins Replacement Considerations

TFM-106-02-L-D-K-TR: Identical electrical and mechanical specifications but supplied in tape-and-reel packaging instead of tubes. Compatible for automated assembly processes requiring reel-fed components.
