TFM-106-02-S-D-LC-TR

Headers, Male Pins Overview

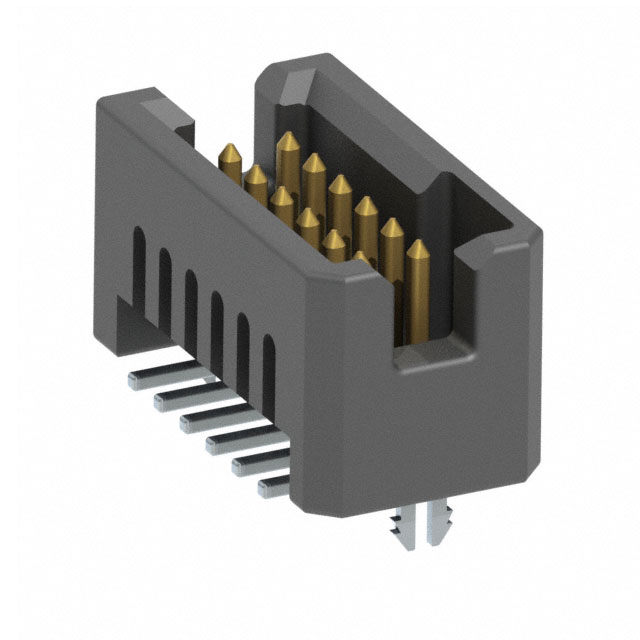

Samtec TFM-106-02-S-D-LC-TR is a surface-mount header in the Tiger Eye TFM series, featuring a 1.27mm pitch and 12 positions across two rows. It utilizes square phosphor bronze contacts with 30µin gold plating for mating surfaces and tin for termination. The connector employs a push-pull retention mechanism and includes four-wall shielding. Rated for 250VAC and 3.7A per contact, it operates within -55°C to 125°C using black LCP insulation rated UL94 V-0.

Headers, Male Pins Feature Summary

• Push-pull retention system ensures secure board-to-board or cable connections
• Four-wall shielded design provides electromagnetic interference protection
• Square post terminal geometry supports automated pick-and-place assembly

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Cable-to-board assemblies requiring rugged retention
• Automated surface-mount manufacturing processes

Headers, Male Pins Procurement Notes

Verify that the LC suffix denotes low profile characteristics and TR indicates tape-and-reel packaging. Confirm RoHS3 compliance and MSL level 1 status during sourcing. Ensure the specific part number matches the required pin count and row configuration for your PCB layout.

Headers, Male Pins Selection Notes

Select this component when high reliability and automated assembly are required. The push-pull feature offers superior retention compared to standard headers. Verify that the 1.27mm pitch aligns with your board density requirements and that the surface-mount footprint fits your design constraints.

Headers, Male Pins Part Context

This part belongs to Samtec's Tiger Eye TFM family, designed for high-reliability applications. It combines the robustness of push-pull locking with the precision of square post terminals. The series is engineered for demanding environments where vibration resistance and signal integrity are critical.

Headers, Male Pins Replacement Considerations

TFM-106-02-S-D-A-K-TR serves as a comparable alternative within the same series. Verify mechanical dimensions and electrical ratings before substitution.
