TFM-108-02-S-D-WT-K-TR

Headers, Male Pins Overview

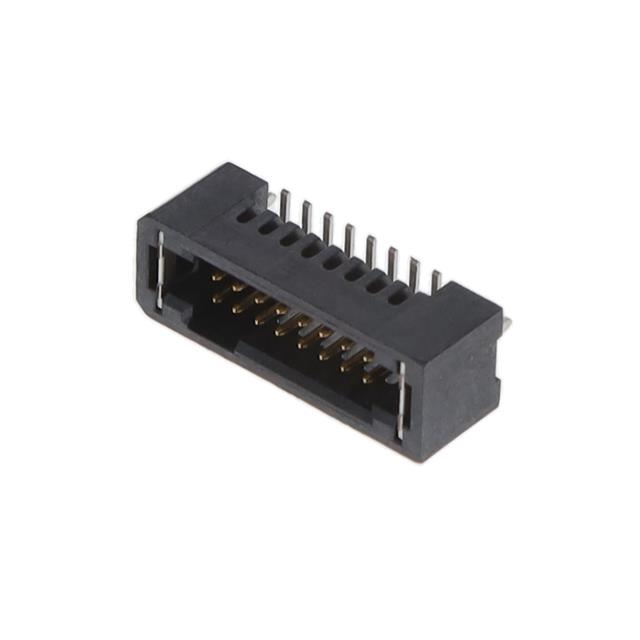

The TFM-108-02-S-D-WT-K-TR is a Samtec Tiger Eye terminal strip header featuring a 1.27 mm pitch and 16 positions in a double-row configuration. Designed for surface-mount installation, it utilizes gold-plated phosphor bronze contacts rated for 3.2 A current and 250 VAC voltage. The shrouded housing is constructed from black liquid crystal polymer with UL 94 V-0 flammability ratings. It supports wire gauges of 30 to 28 AWG and operates within a temperature range of -55°C to +125°C. The component is supplied in cut tape or reel packaging.

Headers, Male Pins Feature Summary

• High-reliability multi-finger contact system ensures stable electrical connections
• Shrouded design provides precise alignment during board-to-board mating
• Surface-mount termination facilitates automated assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Automotive electronics systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffixes against official Samtec documentation to ensure correct termination style and packaging options. Confirm that the selected variant matches the required pin count and row configuration for your PCB layout. Cross-reference the RoHS compliance status and material specifications with current manufacturer declarations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch surface-mount header is required for high-reliability applications. Ensure the PCB footprint matches the specified dimensions for the 16-position double-row configuration. Verify that the operating environment falls within the stated temperature range and that the current rating meets the circuit requirements.

Headers, Male Pins Part Context

This part belongs to the TFM series of high-reliability terminal strips by Samtec. It is designed to mate with corresponding socket strips, such as the CLP series, utilizing the proprietary Tiger Eye contact technology. The series offers various configurations to support diverse connectivity needs in compact electronic designs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TFM series headers with identical pitch and position counts, such as TFM-108-02-S-D-K-TR. Verify mechanical compatibility and electrical ratings before swapping components.
