TFM-110-02-S-D-A

Headers, Male Pins Overview

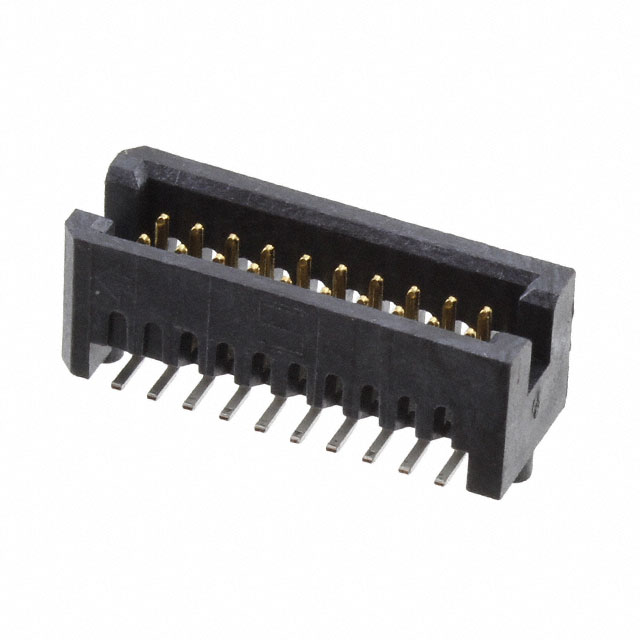

The TFM-110-02-S-D-A is a surface-mount header strip from the Tiger Eye TFM series by Samtec Inc. It features a 1.27mm (0.050 inch) pitch with 20 positions arranged in two rows. The connector utilizes phosphor bronze contacts with 30µin gold plating for mating surfaces and tin plating for termination. Designed for board-to-board or cable applications, it offers a rated current of 3.7A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-density interconnect capability with a 1.27mm pitch
• Robust four-wall shrouding for precise alignment
• Push-pull locking mechanism for secure retention
• Optimized for automated pick-and-place assembly

Headers, Male Pins Applications

• Board-to-board connections in compact electronics
• Cable-to-board interconnections
• High-density signal routing in consumer devices
• Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'A' against official documentation to confirm its exact functional impact on the component's specifications. Ensure compatibility with standard surface-mount reflow profiles and check for RoHS3 compliance status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability connection is required for dense layouts. The 1.27mm pitch balances pin count with spacing needs. Consider the push-pull feature if vibration resistance is critical. Verify that the 3.7A rating meets the thermal requirements of the target application.

Headers, Male Pins Part Context

This part belongs to the Tiger Eye TFM series, which focuses on rugged power and signal connectivity. It complements other Samtec connectors like the SFM socket strips, providing a complete interconnect solution for high-density electronic assemblies requiring reliable performance in space-constrained environments.

Headers, Male Pins Replacement Considerations

TFM-110-02-S-D is a compatible variant without the 'A' suffix. Verify if the suffix alters mechanical or electrical properties before substitution.
