TFM-150-01-F-D

Headers, Male Pins Overview

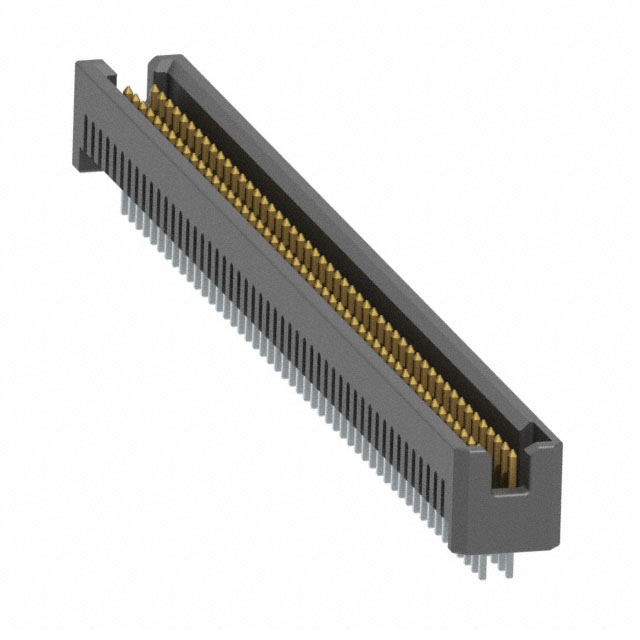

The Samtec TFM-150-01-F-D is a board connector featuring 100 contacts arranged in two rows. It utilizes a male contact configuration with straight orientation and solder terminals for PCB attachment. The component measures 1.875 inches in length, 0.225 inches in width, and 0.22 inches in depth. Contact finishes include gold flash over nickel for mating surfaces and matte tin for termination points.

Headers, Male Pins Feature Summary

• High-reliability Tiger Eye terminal strip design
• Shrouded and polarized construction
• Screw-down locking options available

Headers, Male Pins Applications

• Board-to-board interconnection
• Discrete wire system integration
• PVC or Teflon cable assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix against official documentation to confirm exact physical dimensions and locking mechanism variations. Confirm RoHS compliance status through current manufacturer datasheets. Ensure the selected variant matches the required contact finish and mounting style for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a high-density, shrouded header with screw-down retention is required. Consider the 0.050-inch pitch for standard spacing needs. Evaluate the straight orientation and solder termination method against available panel space and assembly constraints.

Headers, Male Pins Part Context

This part belongs to the TFM series of high-reliability terminal strips. The series offers various configurations including surface mount and through-hole options. Variants may differ by contact count, orientation, and locking features such as push-pull or screw-down mechanisms.

Headers, Male Pins Replacement Considerations

TFM-150-01-F-D-LC

Headers, Male Pins FAQ

What is the contact gender?

Male

Does the connector have shrouding?

Yes
