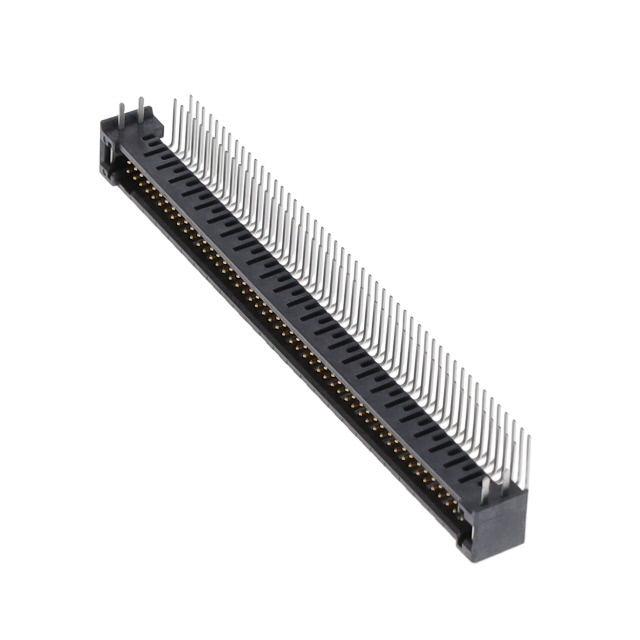

TFM-150-01-L-D-RE2-WT

Headers, Male Pins Overview

The TFM-150-01-L-D-RE2-WT is a high-reliability header strip manufactured by Samtec Inc. It features a .050 inch (1.27mm) pitch and provides 100 positions across two rows. The connector utilizes through-hole termination with solder fastening and employs a push-pull locking mechanism for secure attachment. Contact surfaces are finished with gold plating, while posts are tin-plated. Constructed from phosphor bronze contacts and liquid crystal polymer insulation, it supports a rated current of 4.1A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• High-reliability design suitable for demanding environments
• Push-pull fastening system ensures secure mating
• Configurable through-hole and surface mount terminations

Headers, Male Pins Applications

• Industrial automation systems
• Military and defense electronics
• Automotive control units
• Medical equipment interconnects

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to ensure correct configuration. Confirm that the RE2 designation aligns with required mechanical constraints. Cross-reference the part number with authorized distributors to validate authenticity. Ensure compatibility with mating headers regarding pitch and row count before procurement.

Headers, Male Pins Selection Notes

Select this component when high reliability and secure locking are required in board-to-board applications. The push-pull feature simplifies assembly and maintenance. Verify that the 1.27mm pitch matches the target PCB layout. Consider the operating temperature range and current rating relative to the application's electrical demands.

Headers, Male Pins Part Context

This part belongs to the TFM series of Tiger Eye Terminal Strips. These connectors are designed for high-cycle applications and offer various termination options. The series is known for its configurability and robust performance in harsh conditions, supporting both vertical and horizontal orientations.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Samtec engineering for qualified alternatives if this specific configuration is unavailable.
