TFML-126-02-S-D-LC

Headers, Male Pins Overview

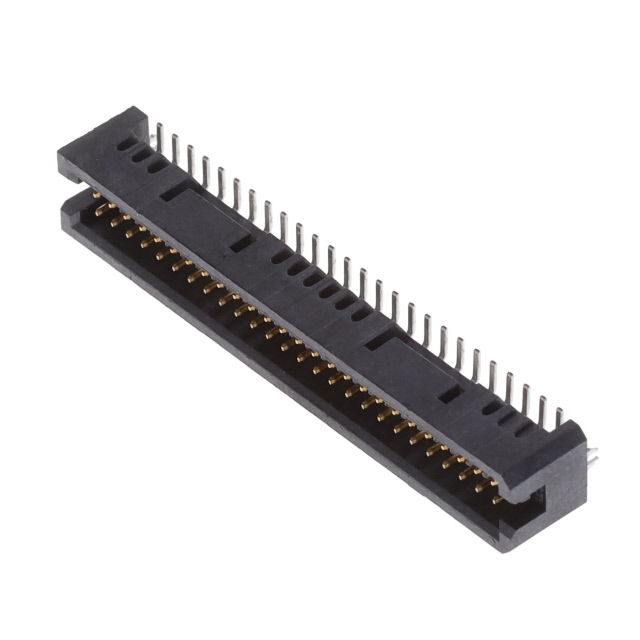

The TFML-126-02-S-D-LC is a high-reliability terminal strip from the Samtec Tiger Eye™ series, designed for board-to-board or wire-to-board interconnections. It features a 1.27 mm (0.05 in) pitch with 52 positions arranged in a double row configuration. The connector utilizes surface mount termination and includes a shrouded body to facilitate blind mating. Constructed with phosphor bronze contacts plated with gold, it ensures durable electrical performance within an operating temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-reliability Tiger Eye™ system design
• Shrouded body for blind mating capability
• Durable friction lock feature
• Multiple stack height options available

Headers, Male Pins Applications

• High-reliability industrial applications
• Automotive electronics systems
• Data communication equipment
• Board-to-board interconnects requiring robust locking

Headers, Male Pins Procurement Notes

Verify the specific suffix 'LC' against the official datasheet to confirm lead-free compliance status and exact contact plating thickness specifications. Ensure the ordering part number matches the required pin count and termination style precisely. Cross-reference the manufacturer's latest documentation to validate current RoHS3 compliance and environmental ratings before final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a shrouded header with integrated locking mechanisms is required for secure connections. The 1.27 mm pitch suits dense layouts while maintaining reliable signal integrity. Consider the surface mount installation method and straight orientation for PCB integration. Verify that the mating socket aligns with the Tiger Eye™ contact system specifications for optimal mechanical retention.

Headers, Male Pins Part Context

This part belongs to the TFML series, which represents locked terminal strips within the broader Tiger Eye™ product family. These connectors are engineered for demanding environments where vibration resistance and secure mating are critical. The series offers various configurations including single and double rows with different termination styles to support diverse electronic assembly requirements.

Headers, Male Pins Replacement Considerations

TFM-126-02-S-D

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from phosphor bronze with a gold plating finish.

Does this connector support blind mating?

Yes, the shrouded body design allows for blind mating capabilities.
