TFML-135-02-L-D-A

Headers, Male Pins Overview

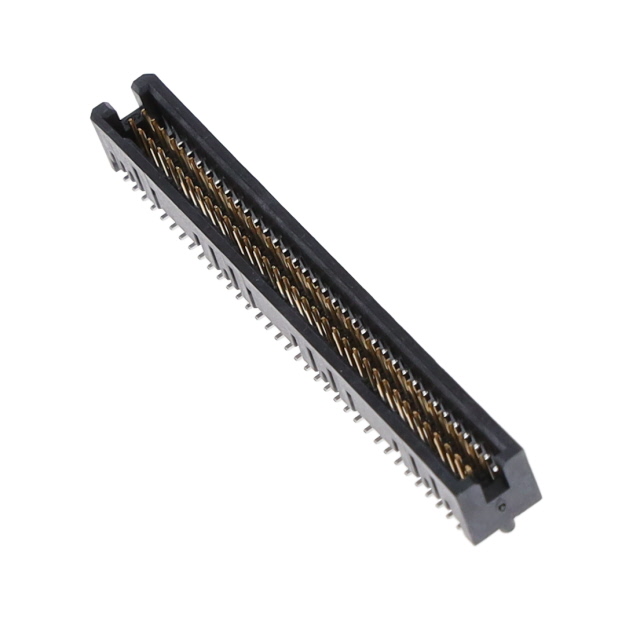

The TFML-135-02-L-D-A is a Tiger Eye™ series header manufactured by Samtec Inc. It features a right-angle through-hole termination with 70 positions arranged in two rows of 35 contacts. The connector utilizes a 0.050-inch (1.27mm) pitch and includes four-wall shielding for EMI protection. Mating contacts are gold-plated phosphor bronze pins, while the column terminations are tin-plated. The insulator is constructed from black liquid crystal polymer rated UL94 V-0, supporting an operating temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting style designed for board-to-board or cable applications
• Four-wall shielded housing provides electromagnetic interference protection
• Gold-plated mating contacts ensure reliable signal transmission
• Friction lock fastening type secures connection without additional hardware

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Cable assemblies requiring right-angle termination
• Electronic systems needing EMI shielding
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'A' against the official Samtec datasheet to confirm it denotes the standard unmodified configuration. Ensure the required quantity aligns with the manufacturer's standard tube packaging specifications. Cross-reference the lead time with current distributor availability as manufacturing schedules may vary. Confirm that the right-angle orientation matches the PCB layout requirements before finalizing the order.

Headers, Male Pins Selection Notes

Select this component when a right-angle through-hole header with integrated shielding is required. The 1.27mm pitch suits high-density layouts. Verify that the PCB copper thickness and hole size accommodate the tin-plated column terminations. Ensure the mating connector interface matches the 0.134-inch contact length specification for proper engagement depth.

Headers, Male Pins Part Context

This part belongs to the Tiger Eye™ TFML series, which combines high-reliability locking mechanisms with shielded headers. The TFML designation specifically indicates a right-angle through-hole variant within the broader Tiger Eye ecosystem. It complements other Samtec interconnect solutions by offering robust mechanical retention and signal integrity in compact form factors.

Headers, Male Pins Replacement Considerations

TFML-135-02-L-D-P

Headers, Male Pins FAQ

What is the insulation material used in this connector?

The insulator is made from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.

Does this connector include shielding?

Yes, the TFML-135-02-L-D-A features a four-wall shielded housing design for EMI protection.
