TFX125.A

$41.00

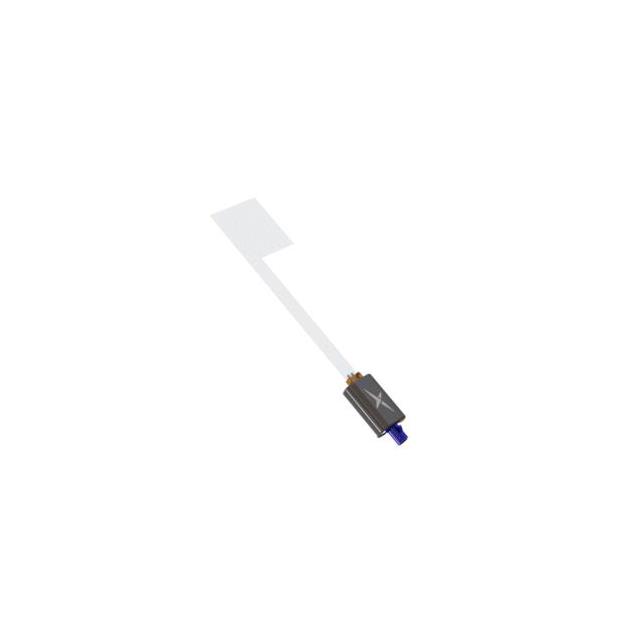

Description：FLEXIBLE INVISIBILE GNSS ANTENNA
Series：-
Mfr：Taoglas Limited
Package：Bag

SKU:8b4a1e099c17 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TFX125.A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is FLEXIBLE INVISIBILE GNSS ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for TFX125.A

Description：FLEXIBLE INVISIBILE GNSS ANTENNA
Series：-
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range：-
Antenna Type：Flat Patch
Number of Bands：6
VSWR：-
Return Loss：-
Gain：-18.69dBic, -15.8dBic, -13.07dBic, -5.54dBic, -5.54dBic, -7.26dBic
Features：Cable - 123.8mm, LNA
Termination：Fakra
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：0.020" (0.50mm)
Applications：Beidou, Galileo, GLONASS, GNSS, GPS
Power - Max：-

Antennas RF datasheet and documents for TFX125.A

TFX125.A

Antennas RF Overview

The TFX125.A is a flexible, invisible GNSS antenna designed for multi-band reception including GPS, GLONASS, Galileo, Beidou, and QZSS. It operates within a frequency range of 1.17645 GHz to 1.602 GHz with a 50 Ohm impedance. The unit features a FAKRA-C male connector and adhesive mounting style. Key electrical parameters include linear polarization and specific gain values ranging from -9.88 dBic to -4.71 dBic across bands. VSWR performance varies between 2:1 and 6:1. Physical dimensions are 176 mm in length and 81.6 mm in width, supporting operation temperatures from -40°C to +85°C.

Antennas RF Feature Summary

Invisible flexible PCB trace design enables seamless integration into limited placement areas
Multi-band GNSS coverage supporting GPS, GLONASS, Galileo, Beidou, and QZSS protocols
FAKRA-C male connector interface for secure automotive and industrial connections

Antennas RF Applications

Automotive navigation systems
EV charging infrastructure
Digital signage displays

Antennas RF Procurement Notes

Verify the specific suffix designation against the manufacturer datasheet to confirm exact band configuration and connector type. Ensure compatibility with FAKRA-C mating interfaces. Confirm RoHS compliance status through official documentation prior to procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Antennas RF Selection Notes

Select this component when space constraints require a low-profile, flexible antenna solution. Suitable for applications demanding multi-constellation support without external protrusions. Evaluate mechanical flexibility requirements against the PCB trace construction. Ensure environmental ratings meet operational temperature extremes.

Antennas RF Part Context

The TFX125.A belongs to Taoglas' Invisible Antenna portfolio, introduced in 2023. It utilizes flexible PCB technology pioneered by the manufacturer. This series includes cellular and Wi-Fi variants, targeting integrated connectivity solutions for modern electronic devices and vehicles.
