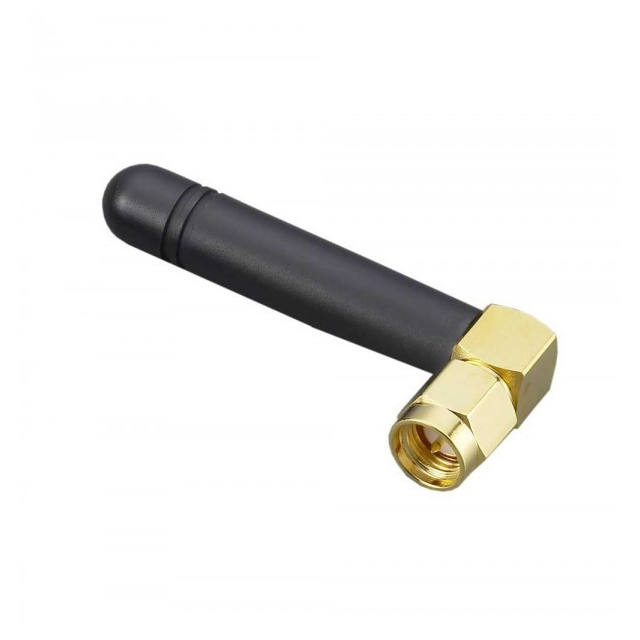

TG.22.0112.HT is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.5GHZ WHIP RA SMA MALE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for TG.22.0112.HT
- Description：RF ANT 1.5GHZ WHIP RA SMA MALE
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.5GHz
- Frequency Range：800MHz ~ 2.2GHz
- Antenna Type：Whip, Right Angle
- Number of Bands：1
- VSWR：2.3
- Return Loss：-
- Gain：0dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：1.764" (44.80mm)
- Applications：CDMA, GSM, UMTS
- Power - Max：20 W
Antennas RF datasheet and documents for TG.22.0112.HT
Antennas RF Overview
The TG.22.0112.HT is a right-angle whip antenna by Taoglas Limited, operating from 800MHz to 2.2GHz with SMA male connector mount. It features 0dBi gain and supports CDMA, GSM, and UMTS standards. The unit handles up to 20W maximum power with a VSWR of 2.3. Maximum height is 44.80mm (1.764 inches). Designed for cellular applications, it offers broadband coverage across multiple frequency bands including 850MHz, 900MHz, 1.8GHz, 1.9GHz, and 2.1GHz centers.
Antennas RF Feature Summary
- Right-angle whip design for flexible mounting orientation
- Broadband operation covering 800MHz to 2.2GHz range
- SMA male connector interface for direct integration
- High power handling capability up to 20W
Antennas RF Applications
- CDMA mobile communication devices
- GSM network terminals
- UMTS cellular equipment
- NTN devices on Band 255/256
Antennas RF Procurement Notes
Verify the specific HT suffix against official Taoglas documentation to confirm mechanical dimensions and performance characteristics. Ensure compatibility with SMA male interfaces in target designs. Confirm RoHS compliance status through current datasheets. Validate frequency range requirements against application needs before ordering.
Antennas RF Selection Notes
Select this model for applications requiring right-angle mounting and broadband cellular support. Consider the 44.80mm height constraint for enclosure design. Verify that 0dBi gain meets system link budget requirements. Ensure the 20W power rating exceeds operational peaks. Check connector type compatibility with host PCB or cable assemblies.
Antennas RF Part Context
Part of the TG.22 series from Taoglas Limited, focusing on cellular antenna solutions. This model specifically targets multi-band GSM, CDMA, and UMTS applications. The right-angle form factor distinguishes it from straight whip variants within the same product family, offering different spatial integration options for device manufacturers.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Taoglas Limited directly for equivalent models or cross-reference options based on specific electrical and mechanical requirements.
