TG.22.0152

Antennas RF Overview

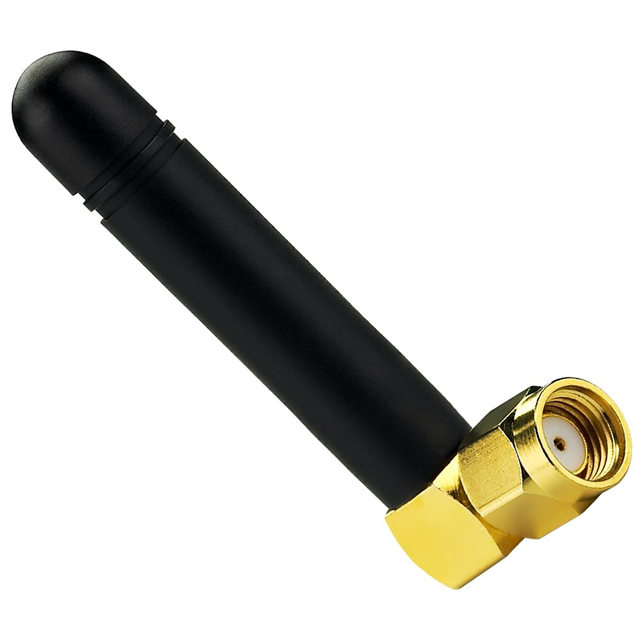

The TG.22.0152 is a penta-band monopole helical antenna manufactured by Taoglas Limited, designed for cellular communication applications. It operates across a frequency range of 800 MHz to 2200 MHz, covering GSM, LTE, 2G, 3G, and 4G standards. The component features an RP-SMA male right-angle connector for secure attachment. With a gain of -2.2 dBi, it provides reliable signal transmission for indoor and outdoor environments. The antenna is constructed for durability and linear polarization.

Antennas RF Feature Summary

• Penta-band coverage spanning 800 MHz to 2200 MHz
• Monopole helical design for robust performance
• RP-SMA male right-angle connector interface

Antennas RF Applications

• GSM network devices
• LTE communication modules
• 2G and 3G cellular equipment
• 4G wireless terminals

Antennas RF Procurement Notes

Verify the specific connector orientation and pin configuration against the mechanical drawing before integration. Confirm that the operating frequency range aligns with the target cellular bands. Ensure the mounting environment supports the physical dimensions and weight of the helical structure. Check RoHS compliance status if required by regional regulations.

Antennas RF Selection Notes

Select this model when a compact, multi-band solution is required for frequencies between 800 MHz and 2200 MHz. The right-angle connector facilitates space-constrained PCB layouts or panel mounts. Consider the -2.2 dBi gain for applications where moderate signal strength is sufficient. Evaluate the RP-SMA interface compatibility with existing cable assemblies.

Antennas RF Part Context

This component belongs to the TG.22 series of cellular antennas from Taoglas. The series offers various configurations for different mounting styles and connector types. The TG.22.0152 specifically utilizes a helical monopole design optimized for broadband cellular coverage. It serves as a standard solution for mobile device manufacturers requiring integrated antenna systems.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official substitution guide for compatible alternatives.
