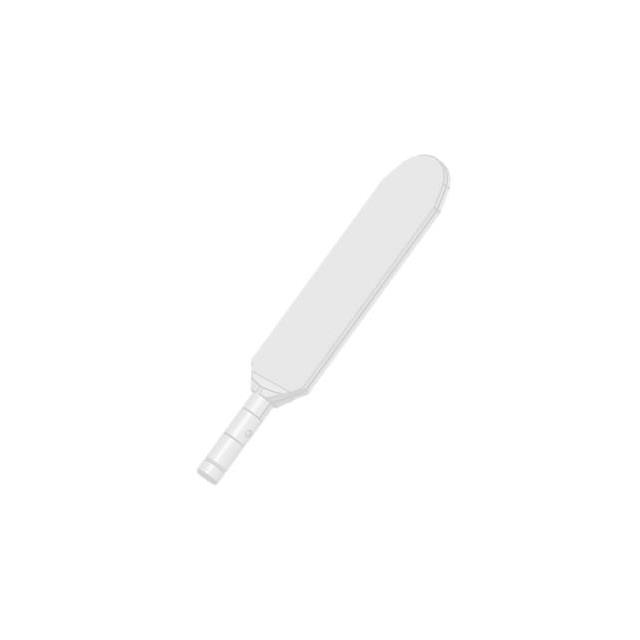

TG.31.8113W is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is 5G/4G TERMINAL MOUNT WHITE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for TG.31.8113W
- Description：5G/4G TERMINAL MOUNT WHITE
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Cellular, Navigation
- Frequency Group：Wide Band
- Frequency (Center/Band)：657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz
- Frequency Range：617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
- Antenna Type：Whip, Straight
- Number of Bands：8
- VSWR：-
- Return Loss：-
- Gain：-1.9dBi, 1.2dBi, 0.8dBi, -1.2dBi, 4.6dBi, 4.2dBi, 3.2dBi, 4.4dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：8.295" (210.70mm)
- Applications：2G, 3G, 4G, 5G, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi
- Power - Max：10 W
Antennas RF datasheet and documents for TG.31.8113W
Antennas RF Overview
The TG.31.8113W is a hinged wideband antenna engineered for 5G modules, gateways, and routers. It operates across the 600MHz to 6000MHz cellular spectrum with a frequency range of 5.15GHz to 5.925GHz. The component features a gain of 4.4dBi and utilizes a white, UV-resistant housing. Designed for robust connectivity in next-generation wireless applications, it supports high-efficiency performance within the specified RF bands.
Antennas RF Feature Summary
- Hinged design for flexible installation orientation
- UV-resistant white housing for durability
- Wideband coverage across cellular spectrum
Antennas RF Applications
- 5G modules
- Gateways
- Routers
Antennas RF Procurement Notes
Verify the specific part number TG.31.8113W against official Taoglas Limited documentation to confirm the white housing variant and hinged mechanical configuration. Ensure compatibility with the intended 5G module or router form factor prior to integration. Cross-reference technical specifications directly with the manufacturer's datasheet to validate performance parameters.
Antennas RF Selection Notes
Select this model when flexible mounting angles are required for 5G gateway or router deployments. The hinged mechanism allows optimization of signal directionality relative to the base station. The UV-resistant construction suits outdoor or semi-outdoor environments where exposure to sunlight may degrade standard materials.
Antennas RF Part Context
This component belongs to the Taoglas TG.31 series, which provides wideband solutions for cellular communications. The series is designed to meet the rigorous demands of modern wireless infrastructure, offering reliable connectivity across multiple frequency bands essential for advanced mobile broadband services.
Antennas RF Replacement Considerations
Consult official Taoglas substitution guides for verified alternatives. Generic replacements may not match the hinged mechanical interface or specific UV-resistant material properties required for this application.
