TG-5006CE-23L 16.3680MB

Oscillators Overview

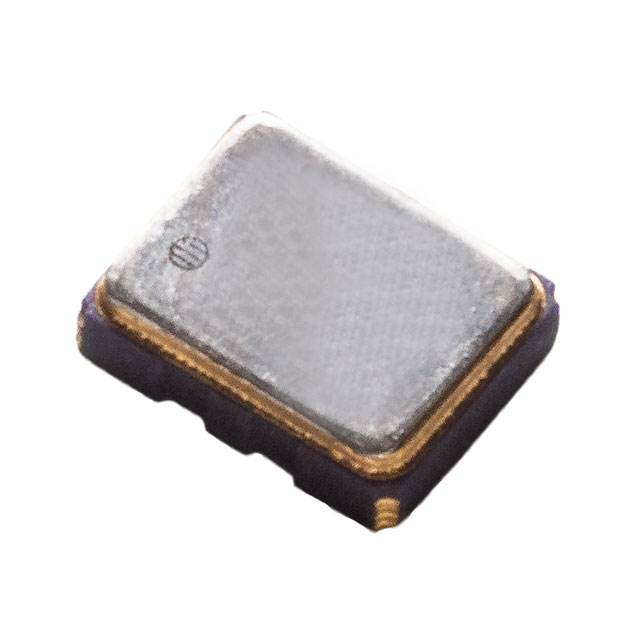

The TG-5006CE-23L 16.3680MB is a Voltage-Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by Epson Timing. It operates at a nominal frequency of 16.368 MHz with a stability of +/-2.0 PPM across the -30°C to +85°C temperature range. The device utilizes a 3.3V supply voltage and features a 4-SMD, No Lead package configuration, specifically a 4-VDFN footprint measuring 3.2x2.5 mm. This component integrates crystal base resonator technology for precise timing applications requiring low phase noise and high frequency accuracy in compact electronic designs.

Oscillators Feature Summary

• Integrates voltage-controlled temperature compensation for enhanced frequency stability
• Utilizes a compact surface-mount package suitable for space-constrained PCB layouts
• Provides precise timing signals through internal crystal resonator technology

Oscillators Applications

• Wireless communication modules requiring stable carrier frequencies
• Portable electronic devices needing low power consumption timing sources
• Industrial control systems operating in variable temperature environments

Oscillators Procurement Notes

Verify the specific suffix code against official Epson documentation to confirm exact frequency tolerance and temperature range specifications. Ensure compatibility with 3.3V logic levels and check pinout alignment for the 4-VDFN package before integration. Confirm that the selected variant matches the required +/-2.0 PPM stability for your application's jitter budget.

Oscillators Selection Notes

Select this component when high frequency stability is critical within a small form factor. The VCTCXO architecture offers superior performance compared to standard TCXOs in dynamic thermal conditions. Consider the 3.3V operating voltage and SMD packaging constraints during schematic design. Evaluate the -30°C to +85C range against your environmental requirements to ensure reliable operation.

Oscillators Part Context

This oscillator belongs to Epson's TG series of precision timing solutions, designed for modern mobile and industrial electronics. The series emphasizes miniaturization without compromising signal integrity. The TG-5006CE-23L variant specifically targets applications demanding robust temperature compensation in a minimal footprint, supporting the trend toward smaller, more efficient electronic systems.

Oscillators Replacement Considerations

Consult Epson's official cross-reference guides for direct replacements. Verify that any substitute maintains the 16.368 MHz frequency, 3.3V supply, and 4-pin SMD package dimensions. Ensure equivalent or better stability metrics are met to avoid system timing errors.
