TG.66.A113W

Antennas RF Overview

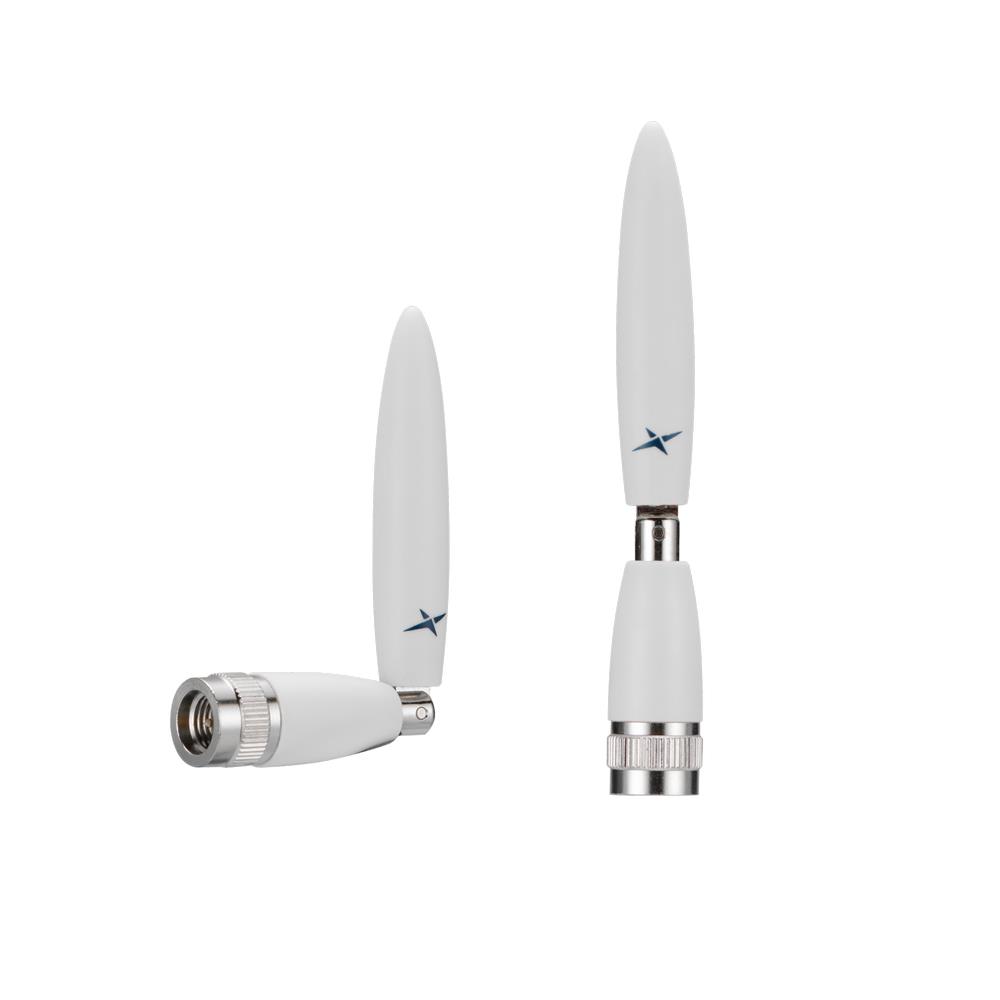

The TG.66.A113W is a miniature indoor RF antenna manufactured by Taoglas Limited, designed for multi-band wireless communication applications. It features a right-angle SMA male connector and linear polarization. The physical dimensions are 70.3mm in length with a diameter of 9.7mm. The antenna supports frequency ranges including 5.15GHz to 5.925GHz, with a gain of 2.7dBi and an impedance of 50 ohms. It is rated for a power handling capacity of 10W and utilizes screw mounting. The component complies with RoHS standards.

Antennas RF Feature Summary

• Compact omnidirectional radiation pattern suitable for hemisphere coverage
• Stable gain performance across the operational frequency bands
• Robust miniature design with integrated right-angle SMA connector

Antennas RF Applications

• 5G terminal installations
• 4G LTE network infrastructure
• Wi-Fi access points
• Indoor cellular signal distribution

Antennas RF Procurement Notes

Verify the specific datasheet version for the TG.66.A113W to confirm current manufacturing status and environmental compliance details. Ensure that the right-angle SMA male connector orientation matches the system integration requirements. Confirm that the 10W power rating aligns with the transmitter output specifications. Check for any recent product change notices or end-of-life announcements from Taoglas Limited prior to finalizing procurement plans.

Antennas RF Selection Notes

Select this model when space-constrained indoor environments require a multi-band solution supporting 5G, LTE, and Wi-Fi frequencies. The 2.7dBi gain and omnidirectional pattern make it suitable for general coverage rather than directional links. Consider the 70.3mm form factor for clearance constraints. The right-angle connector simplifies cabling in tight enclosures compared to straight-mount alternatives.

Antennas RF Part Context

This component belongs to the TG.66 Series, marketed as one of the smallest 5G terminal antennas available. The series is engineered for high-performance wireless connectivity in compact devices. Taoglas Limited positions this line for modern telecommunications equipment requiring efficient spectrum utilization across multiple generations of mobile networks.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Taoglas Limited directly for cross-reference recommendations or updated series replacements.
