TG2016SMN 48.0000M-MCGNNMB

Oscillators Overview

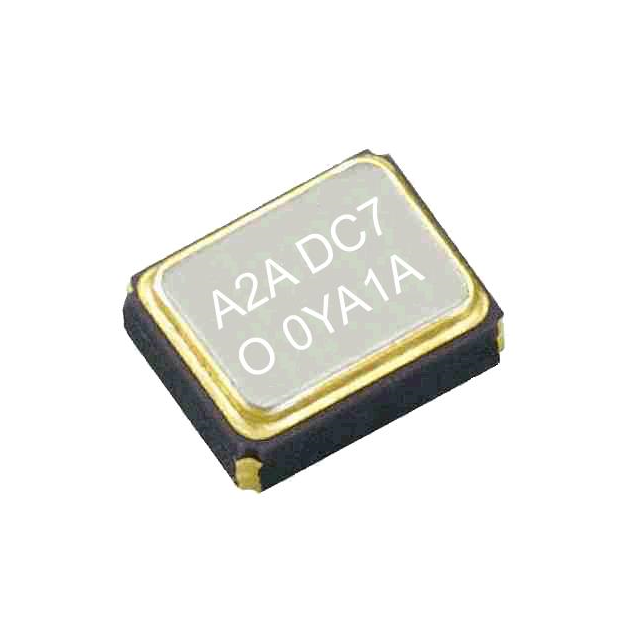

The TG2016SMN 48.0000M-MCGNNMB is a Voltage-Controlled Temperature Compensated Crystal Oscillator (VCTCXO) manufactured by Epson Timing. It operates at a nominal frequency of 48 MHz with a clipped sine wave output format. The device supports a supply voltage range from 1.7 V to 3.63 V and features a 4-SMD, No Lead package. It is designed for stable performance in wireless communication applications.

Oscillators Feature Summary

• Provides temperature-compensated stability for precise timing requirements
• Supports variable frequency control via voltage input
• Utilizes a compact surface-mount package for space-constrained designs

Oscillators Applications

• Wi-Fi modules
• GPS receivers
• Cellular devices
• LPWA IoT systems

Oscillators Procurement Notes

Verify the specific suffix MCGNNMB against official Epson documentation to confirm pinout and electrical characteristics. Ensure the design accommodates the 1.7 V to 3.63 V supply range. Confirm that the clipped sine wave output matches the receiving circuit's input requirements. Cross-reference the manufacturer part number X1G005441032115 if applicable.

Oscillators Selection Notes

Select this component when a small form factor VCTCXO is required for 48 MHz applications. Consider the operating temperature range and supply voltage compatibility with the system power rails. Evaluate the need for voltage-controlled tuning versus fixed-frequency oscillators based on phase noise and stability specifications.

Oscillators Part Context

This model belongs to the TG2016SMN series of VCTCXOs from Epson Timing. The series is engineered for high reliability in mobile and wireless communications. The 2.0 x 1.6 mm footprint allows for dense PCB layouts. It serves as a critical clock source for RF transceivers requiring low jitter and accurate frequency generation.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
