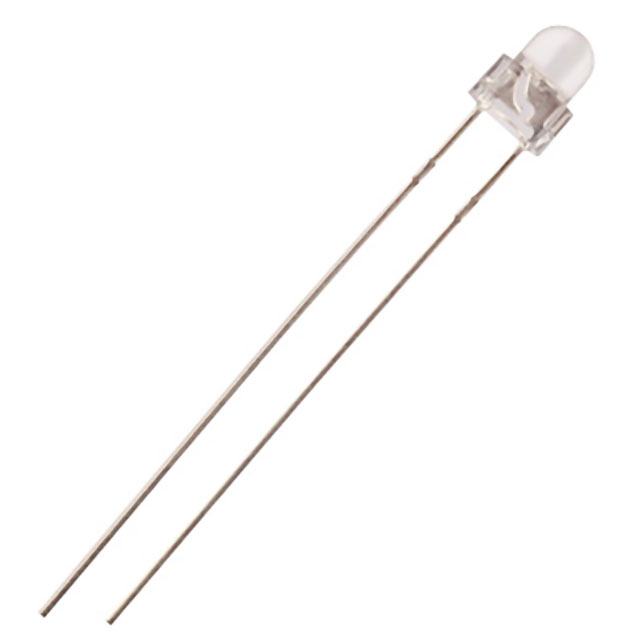

THB3801C is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Stanley Electric Co. Its product description is LED BLUE CLEAR T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for THB3801C
- Description：LED BLUE CLEAR T/H
- Series：-
- Mfr：Stanley Electric Co
- Package：Bulk
- Color：Blue
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：1200mcd
- Lens Style：Round with Domed Top
- Lens Size：3mm, T-1
- Voltage - Forward (Vf) (Typ)：3V
- Current - Test：5mA
- Viewing Angle：15°, 15°
- Mounting Type：Through Hole
- Wavelength - Dominant：470nm
- Wavelength - Peak：465nm
- Features：-
- Package / Case：Radial
- Supplier Device Package：-
- Size / Dimension：-
- Height (Max)：5.90mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for THB3801C
LED Indication - Discrete Overview
The THB3801C is a blue light-emitting diode manufactured by Stanley Electric Co. It utilizes through-hole mounting technology for integration into printed circuit boards. The component features a clear lens configuration to optimize light transmission and visibility. This specific part number represents the base device without additional suffix modifications that might alter electrical or mechanical characteristics.
LED Indication - Discrete Feature Summary
- Blue LED emission with clear lens packaging
- Through-hole mounting construction
LED Indication - Discrete Applications
- Automotive lamp indicator circuits
- Electronic application status displays
- Component-level signal indication
LED Indication - Discrete Procurement Notes
Verify the exact ordering suffix against official Stanley Electric documentation to confirm mechanical and electrical specifications. Ensure compatibility with intended circuit parameters before procurement. Cross-reference the manufacturer's current datasheet for the THB3801C series to validate lead times and availability through authorized channels.
LED Indication - Discrete Selection Notes
Select this component based on the requirement for blue illumination in through-hole assemblies. Confirm voltage and current ratings align with the target application design. Review the complete product family documentation to ensure no specialized variants are required for specific environmental or performance conditions.
LED Indication - Discrete Part Context
Stanley Electric Co produces automotive equipment and electronic components, including LED devices. The THB3801C falls within their portfolio of component products designed for integration into broader electronic systems. This classification distinguishes it from finished tooling products associated with other brand entities.
LED Indication - Discrete Replacement Considerations
Consult official substitution lists for compatible blue LEDs. Verify pinout and thermal characteristics match the original design requirements when considering alternative manufacturers.
