THS32-H10CQ33ST-26.000M

Oscillators Overview

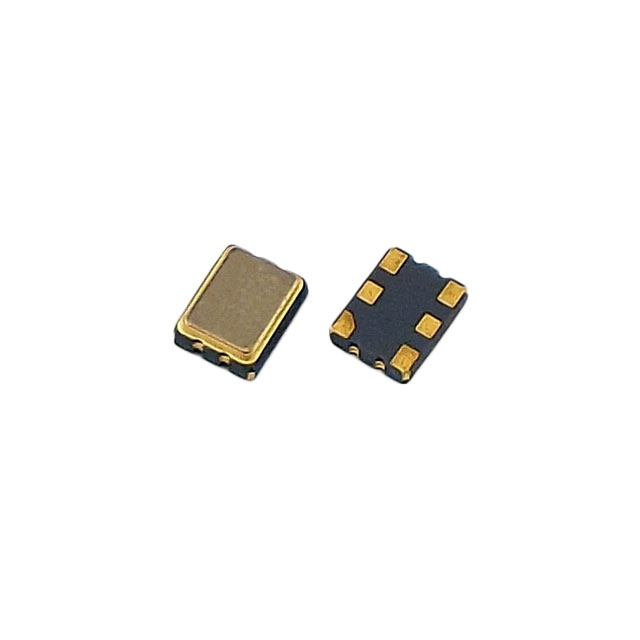

The THS32-H10CQ33ST-26.000M is a standard crystal oscillator (XO) manufactured by Transko Electronics, Inc. It operates at a fixed frequency of 26.000 MHz and utilizes HCMOS output logic levels. The device requires a 3.3V supply voltage and features an enable/disable control function for power management. It is housed in a compact 6-SMD, no-lead package, suitable for surface-mount assembly processes.

Oscillators Feature Summary

• HCMOS output interface for digital signal compatibility
• Integrated enable/disable control functionality
• Standard XO design with 3.3V operation

Oscillators Applications

• Digital clock generation in embedded systems
• Timing reference for microprocessors
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific suffix '26.000M' to confirm the 26 MHz frequency variant. Ensure the package type matches the 6-SMD no-lead footprint requirements. Confirm RoHS3 compliance status if environmental regulations apply to the target assembly process.

Oscillators Selection Notes

Select this component when a precise 26 MHz timing source is required with low-power HCMOS drive capabilities. Consider the enable pin utility for system power sequencing. Evaluate the 6-SMD form factor against available PCB real estate constraints.

Oscillators Part Context

This part belongs to the THS32 series of surface-mount oscillators from Transko Electronics. It shares the physical package and electrical architecture with other variants in the line, differing primarily in output frequency and specific ordering suffixes.

Oscillators Replacement Considerations

Direct substitutes include the THS32-H10CQ33ST-27.000M for similar packaging but different frequency. Verify pinout compatibility before replacing with generic HCMOS oscillators.
