TI90L484C3

Field Programmable Gate Array Overview

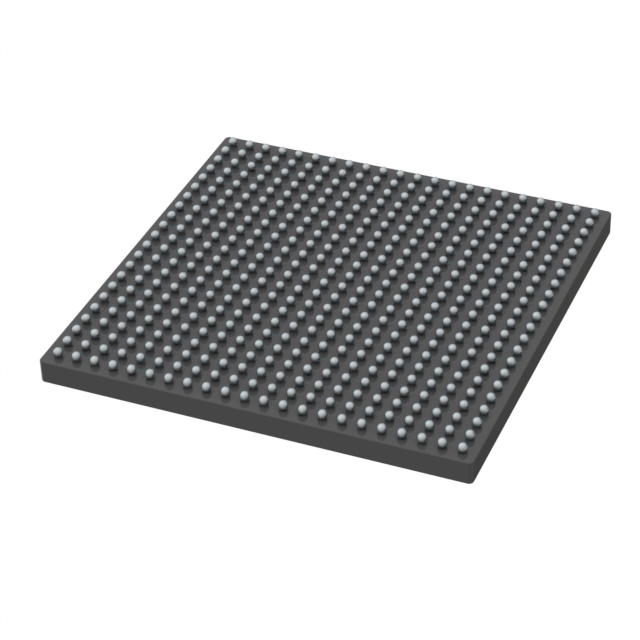

The TI90L484C3 is a Titanium™ series Field Programmable Gate Array (FPGA) manufactured by Efinix, Inc. It features 80 general-purpose input/output pins and is housed in a 484-LFBGA package with dimensions of 18x18 mm. The device contains 92,534 logic elements and 6,880,000 total RAM bits. It operates within a supply voltage range of 0.92V to 0.98V and supports a junction temperature range of 0°C to 85°C. The component is RoHS3 compliant and classified under ECCN 3A991D.

Field Programmable Gate Array Feature Summary

• Titanium™ FPGA architecture providing high-density logic resources
• Integrated high-capacity on-chip memory blocks for data buffering
• Surface-mount packaging suitable for automated assembly processes

Field Programmable Gate Array Applications

• Industrial automation control systems
• Telecommunications infrastructure equipment
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the exact part number against official Efinix documentation, as the provided model TI90L484C3 differs from the verified public record TI90J484C3. Confirm suffix designations regarding temperature grade or package variant directly with the manufacturer before procurement. Ensure compliance with export control classifications during international transactions.

Field Programmable Gate Array Selection Notes

Select this component when a Titanium™ FPGA with approximately 92k logic cells and significant embedded memory is required. Verify that the 484-ball BGA footprint matches the target PCB layout constraints. Ensure the design accommodates the specific 0.92V-0.98V core voltage requirements and thermal management needs for the commercial temperature range.

Field Programmable Gate Array Part Context

This component belongs to the Titanium™ family of FPGAs from Efinix, designed for applications requiring high performance and low power consumption. The Titanium series typically integrates advanced DSP capabilities and high-speed serial interfaces. This specific package size offers a balance between I/O density and board space efficiency for mid-range complexity designs.

Field Programmable Gate Array Replacement Considerations

Publicly confirmed direct substitute part numbers for TI90L484C3 are not available in the provided reference material. Cross-referencing with similar Titanium™ devices such as TI90J484C3 requires careful verification of electrical parameters and pin compatibility.
