TJC3-10A UL (WT)

Headers, Male Pins Overview

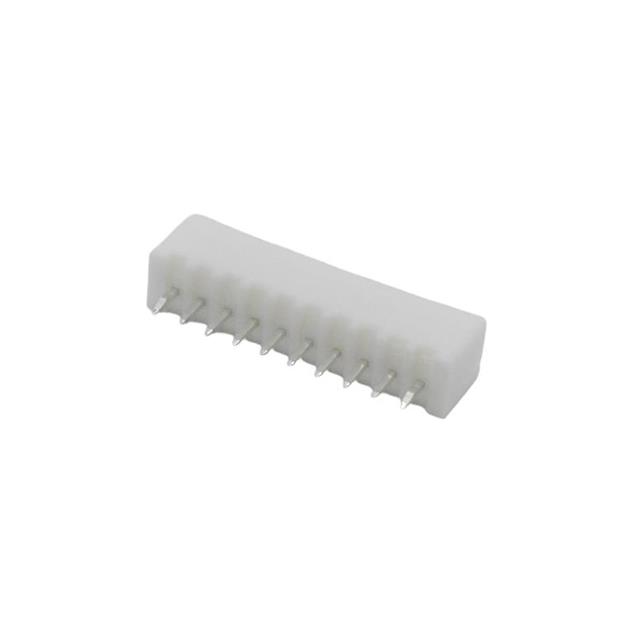

The TJC3-10A UL (WT) is a vertical header connector manufactured by CWB Electronics Inc. It features a 2.5mm pitch and provides ten positions for electrical interconnection. The component is designed to accommodate wire gauges ranging from AWG #28 to AWG #22. It supports printed circuit boards with a standard thickness of 1.6 mm. The connector includes UL certification, ensuring compliance with safety standards for use in various electronic assemblies.

Headers, Male Pins Feature Summary

• Vertical header configuration for PCB mounting
• Compatible with AWG #28 to AWG #22 wire gauges
• Supports 1.6 mm PC board thickness
• UL certified for safety compliance

Headers, Male Pins Applications

• Automotive electronic components
• Consumer electronics assemblies
• Data signal interconnections
• Control system wiring

Headers, Male Pins Procurement Notes

Verify the specific part number TJC3-10A UL (WT) against official CWB Electronics documentation to confirm pin count and pitch specifications. Ensure that the required wire gauge falls within the supported AWG range of 28 to 22. Confirm that the target PCB thickness matches the 1.6 mm requirement. Check for any specific packaging or reel options if available in the manufacturer's catalog.

Headers, Male Pins Selection Notes

Select this connector when a vertical header with a 2.5mm pitch is required for low-to-medium current applications. Consider the AWG compatibility for the intended wiring harness. Verify that the UL certification meets the regulatory requirements of the final product assembly. Compare against other TJC3 series variants if different pin counts or orientations are needed.

Headers, Male Pins Part Context

This component belongs to the TJC3 series of rectangular connectors produced by CWB Electronics Inc. The series includes various configurations such as right-angle headers and housings with different pin counts. The TJC3-10A UL (WT) specifically denotes a 10-position vertical header variant within this family, distinguished by its UL listing and specific mechanical dimensions.
