TJC3-12A UL (WT)

Headers, Male Pins Overview

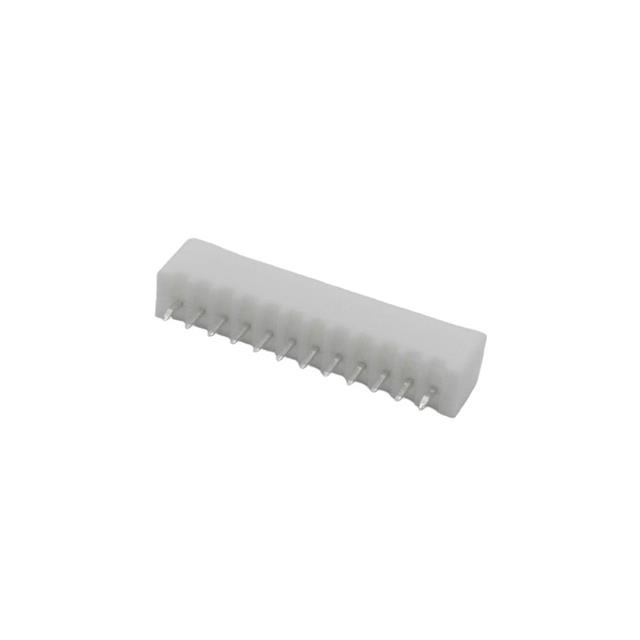

The TJC3-12A UL (WT) is a vertical header connector manufactured by CWB Electronics Inc. It features a 2-position configuration with a 2.5mm pitch, designed for reliable signal and power connections. The component supports wire gauges ranging from AWG #28 to AWG #22 and accommodates printed circuit boards with a thickness of 1.6 mm. This connector is UL certified under file number E200881, ensuring compliance with safety standards for use in data, signal, control, and power applications.

Headers, Male Pins Feature Summary

• Vertical header design for through-hole mounting on PCBs
• UL certified for safety in data, signal, control, and power applications
• Compatible with wire gauges from AWG #28 to AWG #22

Headers, Male Pins Applications

• Data transmission systems
• Signal processing circuits
• Control panel interconnections
• Power distribution modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix and pin count against the official datasheet to ensure compatibility with the target PCB footprint. Confirm that the UL certification file E200881 applies to the exact variant being procured. Cross-reference the applicable wire gauge range and board thickness requirements with the system design specifications before finalizing the purchase order.

Headers, Male Pins Selection Notes

Select this component when a vertical orientation is required for a 2-position connection with a 2.5mm pitch. Ensure the application environment is compatible with the specified wire gauge range of AWG #28 to AWG #22. Verify that the PCB thickness matches the 1.6 mm requirement for proper mechanical fit and stability during assembly and operation.

Headers, Male Pins Part Context

This part belongs to the TJC3 series of bar connectors produced by CWB Electronics Inc., a manufacturer specializing in automotive and consumer electronic components. The series includes various housing and header variants designed for quick connectivity solutions. The TJC3-12A UL (WT) specifically denotes a vertical header configuration within this family, distinguished by its UL certification and specific pin count.

Headers, Male Pins Replacement Considerations

Direct substitutes include other TJC3 series headers such as TJC3-2A UL (WT) or TJC3-9Y UL (WT), provided they match the 2.5mm pitch and 2-position requirement. Ensure any replacement maintains the same vertical orientation and UL certification status to preserve system compliance and mechanical integrity.
