TJC3-3A UL (WT)

Headers, Male Pins Overview

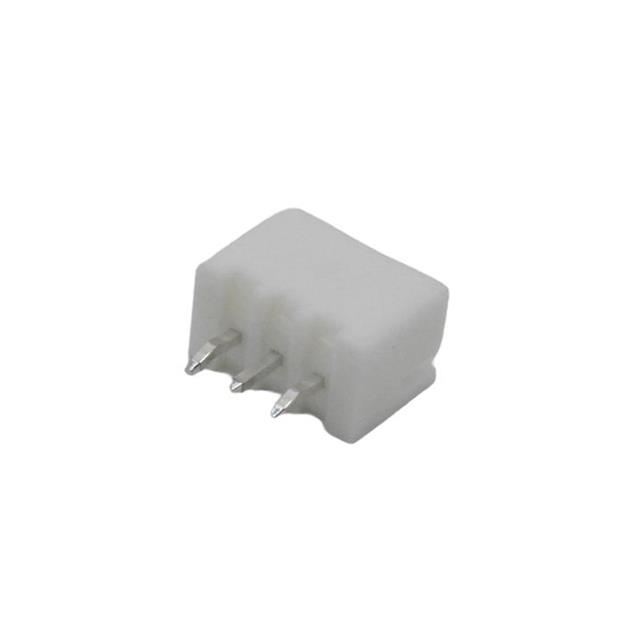

The TJC3-3A UL (WT) is a vertical male pin header connector manufactured by CWB Electronics Inc. It features a 2.5mm pitch and provides three positions for circuit interconnection. The component is rated for a current of 3A with a contact resistance of less than or equal to 10mΩ. It holds UL certification under standard E200881, ensuring compliance with safety regulations for electronic assemblies.

Headers, Male Pins Feature Summary

• Vertical mounting design for space-efficient PCB integration
• Certified insulation properties meeting UL safety standards
• Low contact resistance for reliable signal transmission

Headers, Male Pins Applications

• Consumer electronics assembly
• Automotive electronics connections
• General-purpose bar connector applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct housing and pin configuration. Confirm that the UL certification number matches the required regulatory standards for your target market. Request updated datasheets directly from CWB Electronics Inc. to validate current manufacturing specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical header with a 2.5mm pitch is required for low-current applications up to 3A. Ensure the PCB footprint matches the 3-position layout. Consider the UL certification requirement if the end product demands specific safety approvals. Compare against other TJC3 series variants if different pin counts or pitches are needed.

Headers, Male Pins Part Context

This part belongs to the TJC3 series of bar connectors produced by CWB Electronics Inc. The series includes various configurations such as TJC3-5Y and TJC3-9Y, offering different position counts. These connectors are designed for use in consumer and automotive electronics, providing a standardized solution for board-to-board or wire-to-board connections within the specified electrical parameters.

Headers, Male Pins Replacement Considerations

Direct substitutes include other TJC3 series headers like TJC3-5A UL (WT) for increased positions, provided the pitch and mounting style remain compatible. Verify mechanical dimensions and electrical ratings before swapping. No alternative manufacturers are explicitly confirmed in public data; consult CWB Electronics for approved equivalents.
