TJC3-7A UL (WT)

Headers, Male Pins Overview

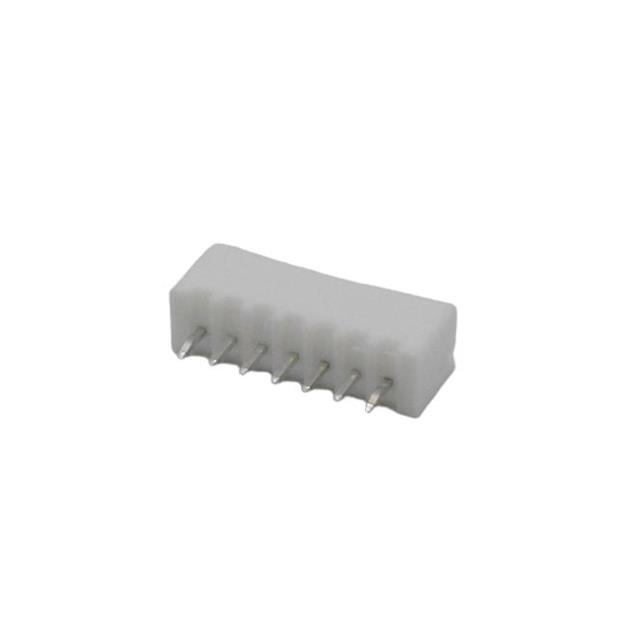

The TJC3-7A UL (WT) is a vertical male pin header connector manufactured by CWB Electronics Inc. This component features seven positions with a 2.5 mm pitch, designed for through-hole mounting on printed circuit boards. It supports wire gauges ranging from AWG #28 to AWG #22 and accommodates a standard PC board thickness of 1.6 mm. The connector includes UL certification under file number E200881, ensuring compliance with recognized safety standards for electronic interconnect applications.

Headers, Male Pins Feature Summary

• Vertical male pin configuration for direct PCB insertion
• Certified with UL recognition for safety compliance
• Compatible with standard 1.6 mm substrate thickness

Headers, Male Pins Applications

• General electronic equipment interconnections
• Automotive electronics assemblies
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official CWB Electronics documentation to confirm pin count and termination style. Ensure the selected variant matches the required 2.5 mm pitch and vertical orientation. Cross-reference the UL file number E200881 with current regulatory databases to validate certification status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical male header with seven contacts is required for rigid PCB connections. Confirm that the target application operates within the specified AWG #28 to #22 wire range. Validate mechanical fit against the 1.6 mm board thickness constraint and ensure the 2.5 mm spacing aligns with the design layout requirements.

Headers, Male Pins Part Context

This part belongs to the TJC3 series of bar connectors produced by CWB Electronics. The series provides standardized interconnect solutions for various industrial and automotive sectors. The TJC3 designation indicates a specific family of headers characterized by consistent pitch dimensions and robust through-hole construction methods.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 7-position count, 2.5 mm pitch, and vertical form factor. Verify that alternative components offer equivalent UL certification and compatible wire gauge ranges to ensure functional interchangeability without redesigning the host assembly.
