TKA-030

Power Line Filter Modules Overview

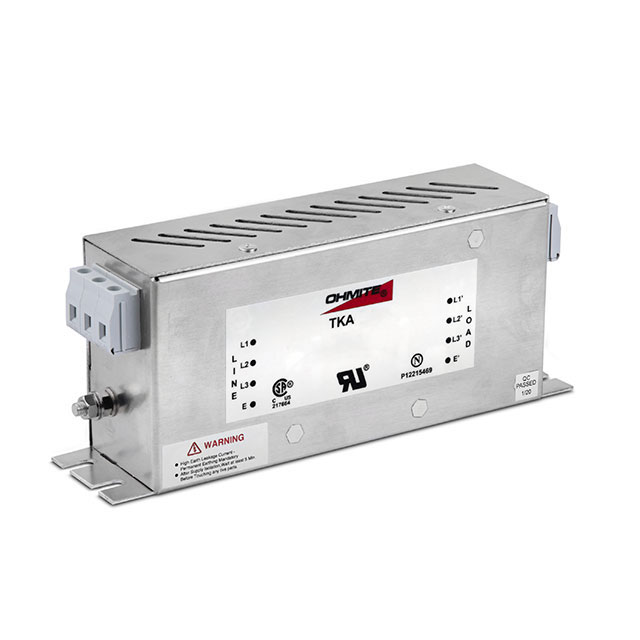

The Ohmite TKA-030 is a three-phase EMI/EMC power line filter designed for industrial applications. It features a maximum voltage rating of 440 VAC and supports a current rating of 30 A. The component utilizes block terminals for secure termination, with a specified termination dimension of 41.000 mm. The unit weighs 0.8 kg and belongs to the TK Series of filters manufactured by Ohmite.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Utilizes block terminal termination for robust electrical connections
• Engineered for high-energy industrial environments

Power Line Filter Modules Applications

• Industrial machinery power distribution
• Three-phase motor drive systems
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify availability status carefully as this specific part number may be obsolete or discontinued. Confirm that substitute components meet identical electrical specifications including 30 A current rating and 440 VAC voltage limits. Ensure physical dimensions and block terminal configurations match existing panel layouts before procurement.

Power Line Filter Modules Selection Notes

Select this component only when three-phase filtering is required at 30 A capacity. Verify that the 440 VAC rating aligns with the system's nominal voltage. Consider the block terminal interface for wiring compatibility. Evaluate weight constraints due to the 0.8 kg mass. Confirm environmental ratings suit the installation location.

Power Line Filter Modules Part Context

The TKA-030 belongs to Ohmite’s TK Series of EMI filters. This series includes variants such as TKA-016, TKA-055, and TKA-100, which share similar structural characteristics but differ in current handling capabilities. The series is designed for robust power line filtering in demanding industrial settings.

Power Line Filter Modules Replacement Considerations

The TKA-030 is listed as obsolete. Potential substitutes include part numbers like 30KEMS10ABSD. Verify that any replacement matches the original 30 A rating, 440 VAC limit, and three-phase configuration.
