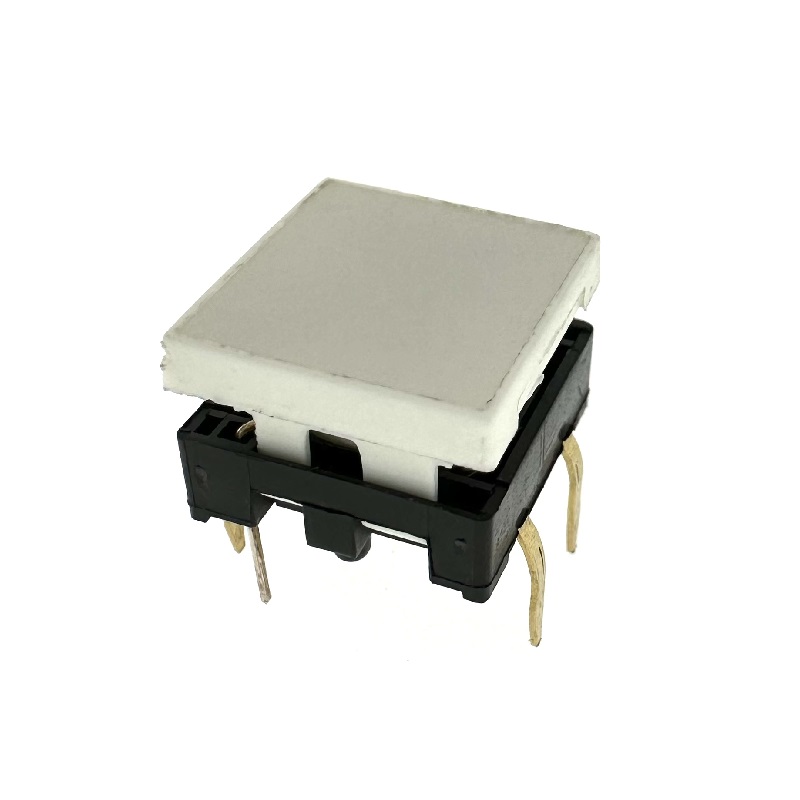

Tactile Switches TL12-SWNN-NNNN product image

TL12-SWNN-NNNN

$1.11

Description：SWITCH TACTILE SPST-NO 0.05A 12V
Series：TL12
Mfr：Shenzhen Lakeview Electronics Co., Ltd
Package：Tray

SKU:f9028b0d6606 Category: Tactile Switches Brand: Shenzhen Lakeview Electronics Co., Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TL12-SWNN-NNNN is listed in the Tactile Switches range at ChipApex. The manufacturer field lists Shenzhen Lakeview Electronics Co., Ltd. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for TL12-SWNN-NNNN

Description：SWITCH TACTILE SPST-NO 0.05A 12V
Series：TL12
Mfr：Shenzhen Lakeview Electronics Co., Ltd
Package：Tray
Circuit：SPST-NO
Switch Function：Off-Mom
Contact Rating @ Voltage：0.05A @ 12VDC
Actuator Type：Plunger for Cap
Mounting Type：Through Hole
Actuator Height off PCB, Vertical：8.30mm
Actuator Length, Right Angle：-
Actuator Orientation：Top Actuated
Termination Style：PC Pin
Outline：12.00mm x 12.00mm
Illumination：Non-Illuminated
Illumination Type, Color：-
Illumination Voltage (Nominal)：-
Operating Force：250gf
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：-
Operating Temperature：-20°C ~ 70°C

Tactile Switches datasheet and documents for TL12-SWNN-NNNN

TL12-SWNN-NNNN
