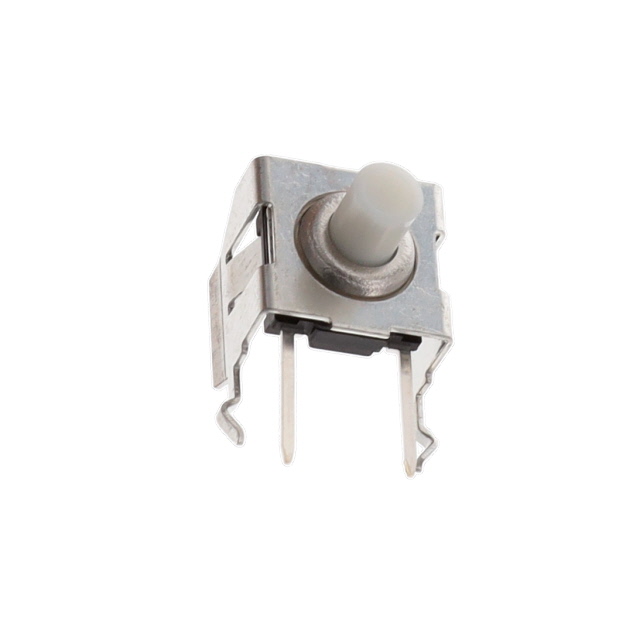

TL6110CF300QP is listed in the Tactile Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.
Tactile Switches specifications for TL6110CF300QP
- Description：SWITCH TACTILE SPST-NO 0.05A 12V
- Series：TL6110
- Mfr：E-Switch
- Package：Tube
- Circuit：SPST-NO
- Switch Function：Off-Mom
- Contact Rating @ Voltage：0.05A @ 12VDC
- Actuator Type：Standard
- Mounting Type：Through Hole, Right Angle
- Actuator Height off PCB, Vertical：-
- Actuator Length, Right Angle：5.70mm
- Actuator Orientation：Side Actuated
- Termination Style：PC Pin
- Outline：8.30mm x 5.80mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Operating Force：300gf
- Ingress Protection：-
- Features：-
- Operating Temperature：-40°C ~ 85°C
Tactile Switches datasheet and documents for TL6110CF300QP
