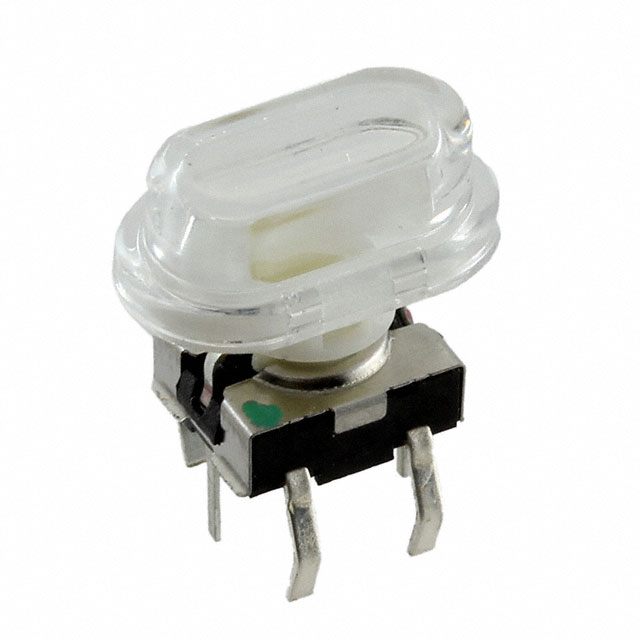

TL6215VF200GGT is listed in the Tactile Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.
Tactile Switches specifications for TL6215VF200GGT
- Description：SWITCH TACTILE SPST-NO 0.05A 12V
- Series：TL6215
- Mfr：E-Switch
- Package：Tray
- Circuit：SPST-NO
- Switch Function：Off-Mom
- Contact Rating @ Voltage：0.05A @ 12VDC
- Actuator Type：Oval Button
- Mounting Type：Through Hole
- Actuator Height off PCB, Vertical：10.50mm
- Actuator Length, Right Angle：-
- Actuator Orientation：Top Actuated
- Termination Style：PC Pin
- Outline：7.70mm x 6.37mm
- Illumination：Illuminated
- Illumination Type, Color：LED, Green
- Illumination Voltage (Nominal)：2.1 VDC
- Operating Force：200gf
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：-
- Operating Temperature：-20°C ~ 70°C
Tactile Switches datasheet and documents for TL6215VF200GGT
