Product Detailed Parameters
- Description：IC MOTOR DRIVER 8V-18V 14DSO
- Series：-
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR)
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushed DC, DC Servo
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (2)
- Interface：Parallel
- Technology：Bipolar
- Step Resolution：-
- Applications：-
- Current - Output：700mA
- Voltage - Supply：8V ~ 18V
- Voltage - Load：8V ~ 18V
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Surface Mount

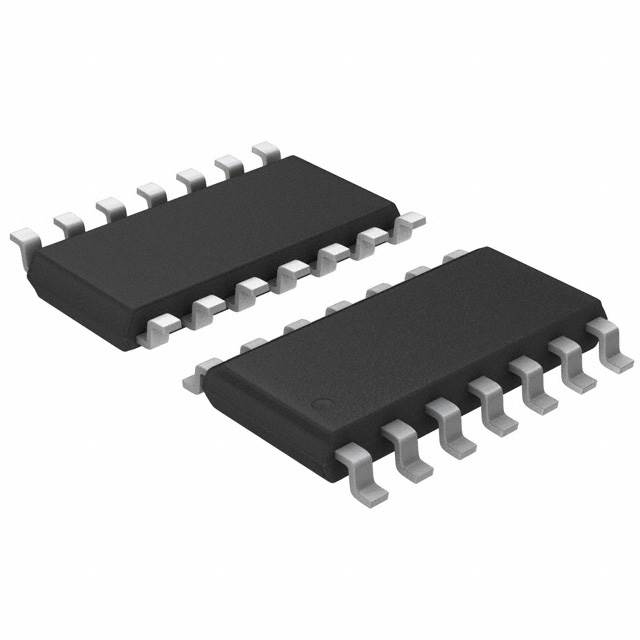

- Package / Case：14-SOIC (0.154", 3.90mm Width)
- Supplier Device Package：PG-DSO-14-22
- Grade：Automotive
- Qualification：-
Download product information
Overview
The TLE4209GXUMA1 is an automotive-grade, fully integrated bipolar DC motor driver manufactured by Infineon Technologies. It operates within a supply voltage range of 8 V to 18 V and delivers a continuous output current of 700 mA. The device features two half-bridge outputs configured for parallel operation, supporting brushed DC motors and DC servo applications. Packaged in a PG-DSO-14-22 surface-mount format, it functions across a junction temperature range of -40°C to +150°C.
Feature Summary
- Fully integrated control and power stage design
- Parallel half-bridge output configuration
- Automotive qualification compliance
Applications
- Brushed DC motor control
- DC servo systems
- Automotive actuator drives
Procurement Notes
Verify component authenticity through authorized channels. Confirm package integrity and moisture sensitivity level handling requirements prior to assembly. Ensure compatibility with existing PCB footprints and thermal management strategies. Review official documentation for any recent product change notices or lifecycle status updates before finalizing procurement plans.
Selection Notes
Select this component for applications requiring robust bipolar motor driving capabilities within the specified voltage window. Evaluate thermal dissipation needs given the 700 mA output capability and operating temperature limits. Consider the 14-pin DSO package constraints for layout optimization. Verify that the parallel bridge configuration aligns with the specific load requirements of the target motor system.
Part Context
This part belongs to the TLE4209 family of integrated motor drivers designed for automotive environments. It combines logic control with high-current power stages in a single compact package. The series supports various motor types including brushed DC and servo motors, providing a complete solution for motion control tasks without external discrete components.
Replacement Considerations
TLE4209GXUMA2 is documented as a parameter-equivalent substitute.
