TLE7184F3VXUMA2

Overview

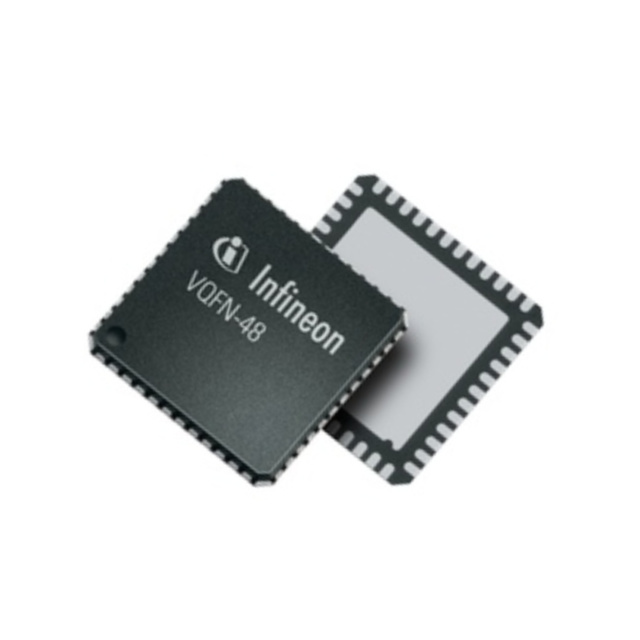

The TLE7184F3VXUMA2 is a system IC for BLDC motor drives, part of the CIPOS Mini series. It integrates three half-bridge pre-drivers and supports external MOSFETs. Key parameters include a supply voltage range of 6 V to 45 V, output current of 350 mA, and operating temperature from -40 °C to +150 °C. It features AEC-Q100 qualification, PWM interface, and operates at 25 kHz. The device is housed in a VQFN-48 package with SMD/SMT installation.

Feature Summary

• Integrates three half-bridge pre-drivers for external MOSFET control
• Includes integrated 3.3 V / 70 mA voltage regulator output
• Features comprehensive diagnostic capabilities including UV, OV, OC, SCD, OT, and VDD supervision
• Supports deadtime control and short circuit protection

Applications

• BLDC motor drive systems
• Automotive power applications
• Motion control systems

Procurement Notes

Verify component status as NRND (Not Recommended for New Designs). Confirm AEC-Q100 automotive qualification requirements. Check VQFN-48 packaging specifications and moisture sensitivity levels prior to ordering. Ensure design compatibility with 6 V to 45 V supply constraints.

Selection Notes

Select this component for applications requiring integrated pre-driver functionality with external power MOSFETs. Consider the 350 mA output current capability and 45 V maximum supply voltage. Evaluate thermal performance within the -40 °C to +150 °C operating range. Verify interface compatibility with PWM control signals.

Part Context

This component belongs to the Infineon TLE7184 family, specifically the CIPOS Mini series. It serves as a specialized motor controller and driver designed for automotive and industrial motion applications. The part number suffix indicates specific packaging and configuration variants within the broader product line.

Replacement Considerations

TLE7184FXUMA2 is listed as an alternative variant within the same family.
