Product Detailed Parameters
- Description：IC MOTOR DRIVER 4.4V-5.25V 20DSO
- Series：-
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR)
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushed DC
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (2)
- Interface：SPI
- Technology：Power MOSFET
- Step Resolution：-
- Applications：-
- Current - Output：8.6A
- Voltage - Supply：4.4V ~ 5.25V
- Voltage - Load：4.5V ~ 28V
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：20-SOIC (0.433", 11.00mm Width) Exposed Pad
- Supplier Device Package：PG-DSO-20-65
- Grade：Automotive
- Qualification：-
Download product information
Overview

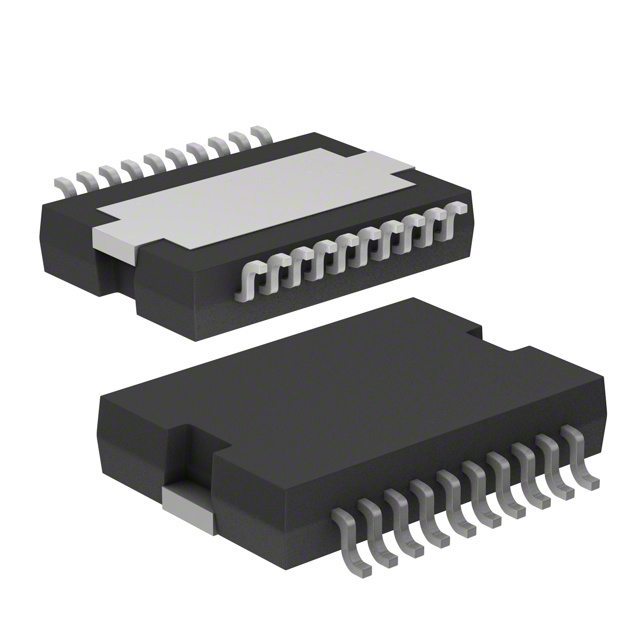

The TLE8209-2E (alias TLE82092EXUMA2) is a motor and ignition controller driver from Infineon Technologies, belonging to the TLE8209 series. It integrates PWM transistors with H-bridge configurations for driving inductive loads. The component is classified under PMIC - Power Management ICs and Motor/Motion/Ignition Controllers & Drivers. It features moisture sensitivity and is supplied in a Reel package. The manufacturer lists this part as NRND (Not Recommended for New Designs), indicating it is obsolete for new development projects.
Feature Summary
- Integrates PWM transistor technology with H-bridge architecture for efficient load control
- Designed specifically for automotive motor, motion, and ignition applications
- Part of the dedicated TLE8209 product family for power management
Applications
- Automotive motor control systems
- Ignition system drivers
- Motion control circuits
Procurement Notes
This component carries an NRND status, meaning it is not recommended for new designs. Verify current lifecycle status and availability through official Infineon channels before procurement. Ensure compatibility with existing legacy systems, as replacement parts may require design modifications. Confirm packaging specifications and moisture sensitivity handling requirements during storage and assembly processes.
Selection Notes
Select this component only for maintaining or repairing existing equipment utilizing the TLE8209 series. Due to its NRND status, it is unsuitable for new product development. Evaluate long-term supply stability and potential obsolescence risks. Consider alternative modern solutions if redesigning the circuit board or updating the product line to ensure future manufacturability.
Part Context
The TLE8209-2E is part of Infineon's specialized portfolio for automotive power management. It falls under the broader category of motor and ignition controllers. The specific alias TLE82092EXUMA2 refers to the same device variant within the TLE8209 family, which focuses on integrated driver solutions for high-current inductive loads in vehicle environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Infineon directly for end-of-life transition plans or recommended alternatives.
