TLE9254VLCXUMA1

Drivers, Receivers, Transceivers Overview

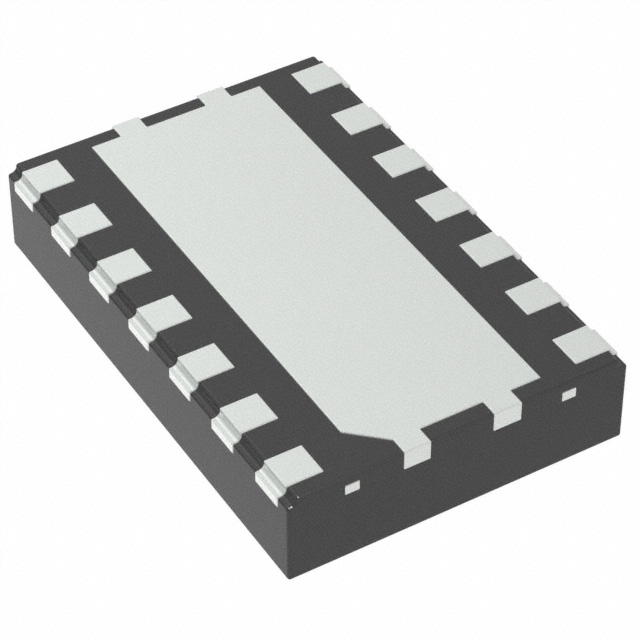

The TLE9254VLCXUMA1 is a high-speed dual CAN transceiver with bus wake-up capability, compliant with ISO 11898-2:2016. It supports CAN FD data frames up to 5 Mbit/s and features very low quiescent current in standby mode. The device operates within a transmitter supply voltage (VCC) range of 4.5 V to 5.5 V and a digital supply voltage (VIO) range of 3.0 V to 5.5 V. It provides ESD robustness of 10 kV (HBM) on CAN pins and -40 °C to +150 °C junction temperature operation. Packaged in PG-TSON-14.

Drivers, Receivers, Transceivers Feature Summary

• Dual channel architecture supporting independent HS CAN communication with dedicated bus wake-up detection for each channel.
• Optimized electromagnetic compatibility with very low emission levels, eliminating the need for external common mode chokes.
• Integrated fail-safe mechanisms including short circuit protection to ground, battery, and VCC, alongside overtemperature protection.
• Low-power management via standby mode with optimized quiescent current and wake-up indication on the RxD output.

Drivers, Receivers, Transceivers Applications

• Gateway modules
• Body Control Modules (BCMs)
• Electric Power Steering systems
• Battery Management Systems
• Cluster and Lighting Control Modules

Drivers, Receivers, Transceivers Procurement Notes

Verify component authenticity through official Infineon channels or authorized distributors. Confirm the specific ordering suffix matches the required package type. Ensure compliance with automotive quality standards such as AEC-Q100 validation before integration into production designs.

Drivers, Receivers, Transceivers Selection Notes

Select this component for applications requiring dual-channel isolation with minimal power consumption. The extended VIO range accommodates both 3.3 V and 5 V microcontrollers. Ensure thermal design accounts for the PG-TSON-14 package characteristics when operating at maximum junction temperatures.

Drivers, Receivers, Transceivers Part Context

This part belongs to the TLE925x series of high-speed CAN transceivers from Infineon Technologies. It serves as an interface between the physical bus layer and the HS CAN protocol controller, designed to protect microcontrollers against network interference while supporting advanced automotive networking protocols.

Drivers, Receivers, Transceivers Replacement Considerations

TLE9254VSKXUMA1
