Product Detailed Parameters
- Description：BLDC_DRIVER_IC
- Series：-
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR)
- Motor Type - Stepper：-
- Motor Type - AC, DC：-
- Function：-
- Output Configuration：-
- Interface：-
- Technology：-
- Step Resolution：-
- Applications：-
- Current - Output：-
- Voltage - Supply：-
- Voltage - Load：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

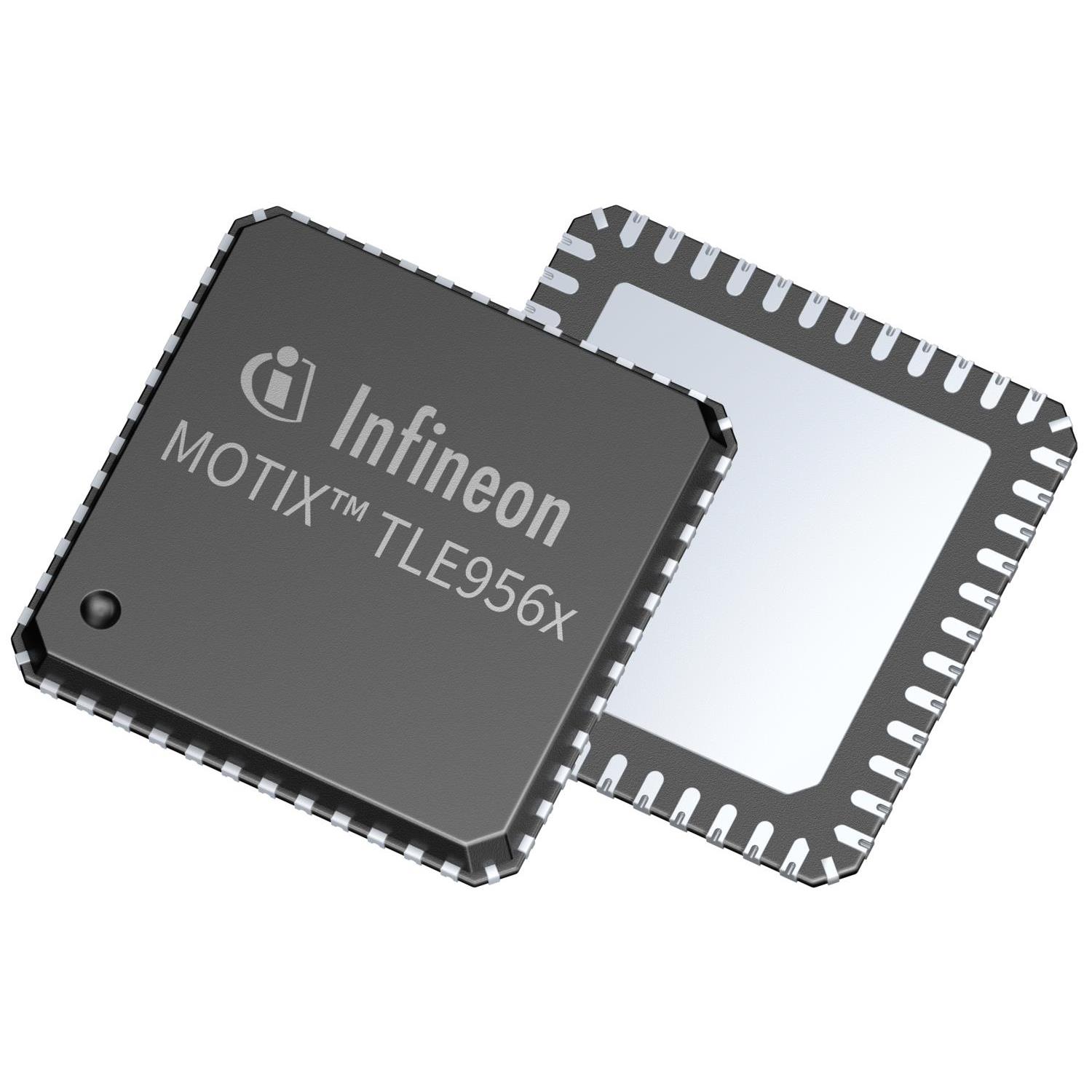

The TLE95623QXJXUMA1 is an automotive-grade DC motor system IC from Infineon's MOTIX family, designed for brushed DC motor control. It integrates a power management unit, communication interfaces, and multiple half-bridge drivers within a PG-VQFN-48 package. The device operates with a supply voltage range of 5.5 V to 28 V, featuring a 5 V / 250 mA low-dropout regulator. It supports PWM frequencies up to 25 kHz and includes a high-speed CAN FD transceiver with partial networking capabilities.
Feature Summary
- Integrates four half-bridge gate drivers for external N-channel MOSFETs with adaptive switching time regulation.
- Includes a high-speed CAN FD transceiver supporting selective wake-up via CAN partial networking.
- Features configurable wake-up sources and fail outputs for safe signalization.
- Provides very low quiescent current consumption in Stop Mode and Sleep Mode.
Applications
- Power lift gate systems
- Seat control modules
- HVAC flap actuators
Procurement Notes
Verify the complete part number including suffixes such as XUMA1 against official Infineon documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the specific variant matches the required automotive qualification standards and interface configurations for your target application design.
Selection Notes
Select this component for applications requiring integrated power management and communication alongside motor driving capabilities. Ensure the design accommodates the PG-VQFN-48 thermal requirements and utilizes external N-channel MOSFETs for the half-bridge outputs. Verify compatibility with the 32-bit SPI control interface and CAN FD network topology.
Part Context
This component belongs to the MOTIX TLE956x series of motor system ICs specifically engineered for brushed DC motor applications in automotive environments. It consolidates power supply, communication, and driver functions into a single compact solution, reducing bill-of-materials complexity compared to discrete implementations.
Replacement Considerations
TLE95613QXXUMA1 is documented as a parameter-equivalent substitute within the same product family.
